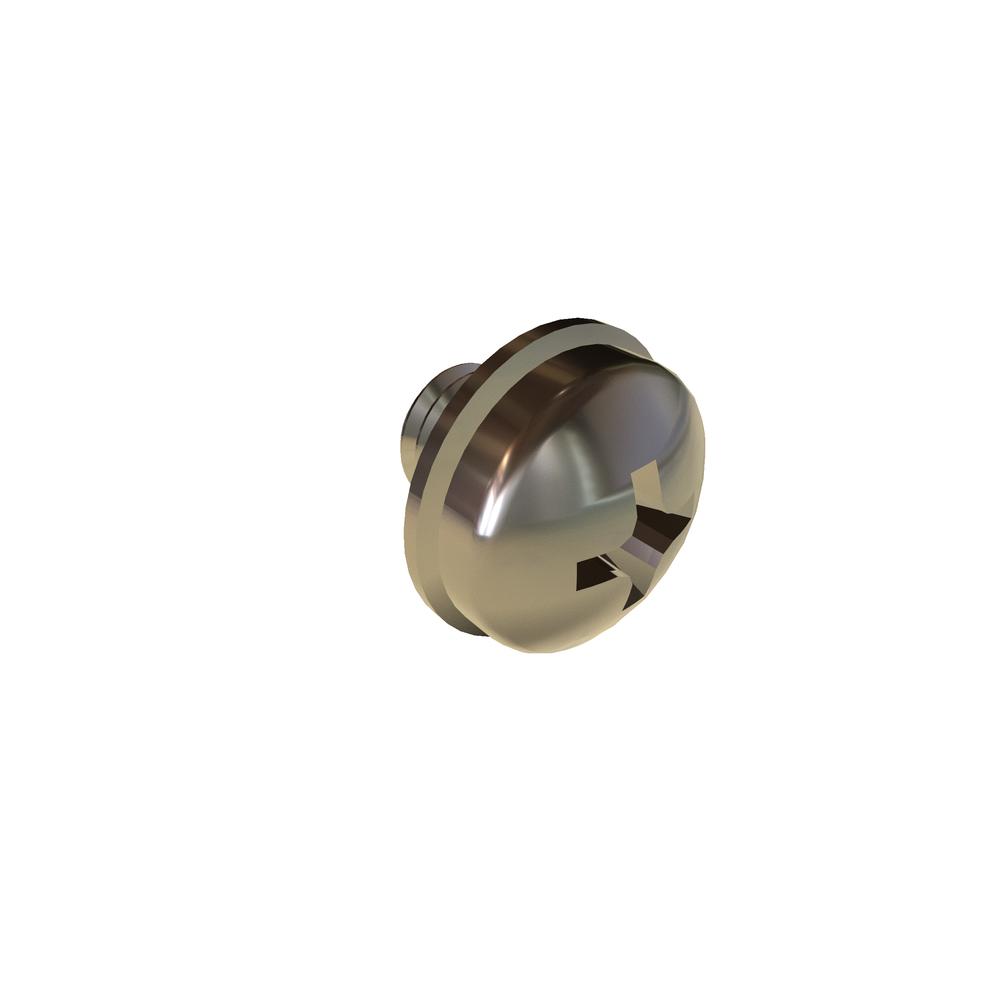

Image for reference purposes only. Actual product may vary.
.5C6PPIS
M5 -.8 X 6 PH PAN INT SEMS SST RoHS
Alternate Codes: N/A
M5 -.8 X 6 Phillips Pan Head Internal Sems Stainless Steel RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 6mm |
| Thread Size | M5x0.8 |
| Finish | Plain |
| Brand | VARIED |
| Recess Diameter | 4.90 mm |
| Washer Type | Internal Tooth Lock Washer |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 5.00 mm |
| Head Type | Pan |
| Lock Washer Thickness (Max.) | 0.65 mm |
| Lock Washer Outside Diameter (Min.) | 10.00 mm |
| Lock Washer Outside Diameter (Max.) | 10.50 mm |
| Drive Size | 2 |
| Penetration Depth (Min.) | 2.40 mm |
| Penetration Depth (Max.) | 2.90 mm |
| Head Radius (Min.) | 8.00 mm |
| RoHS | Compliant |
| Head Diameter (Max.) | 9.50 mm |
| Head Diameter (Min.) | 9.10 mm |
| Head Height (Max.) | 3.70 mm |
| Head Height (Min.) | 3.40 mm |
| Lock Washer Thickness (Min.) | 0.50 mm |
