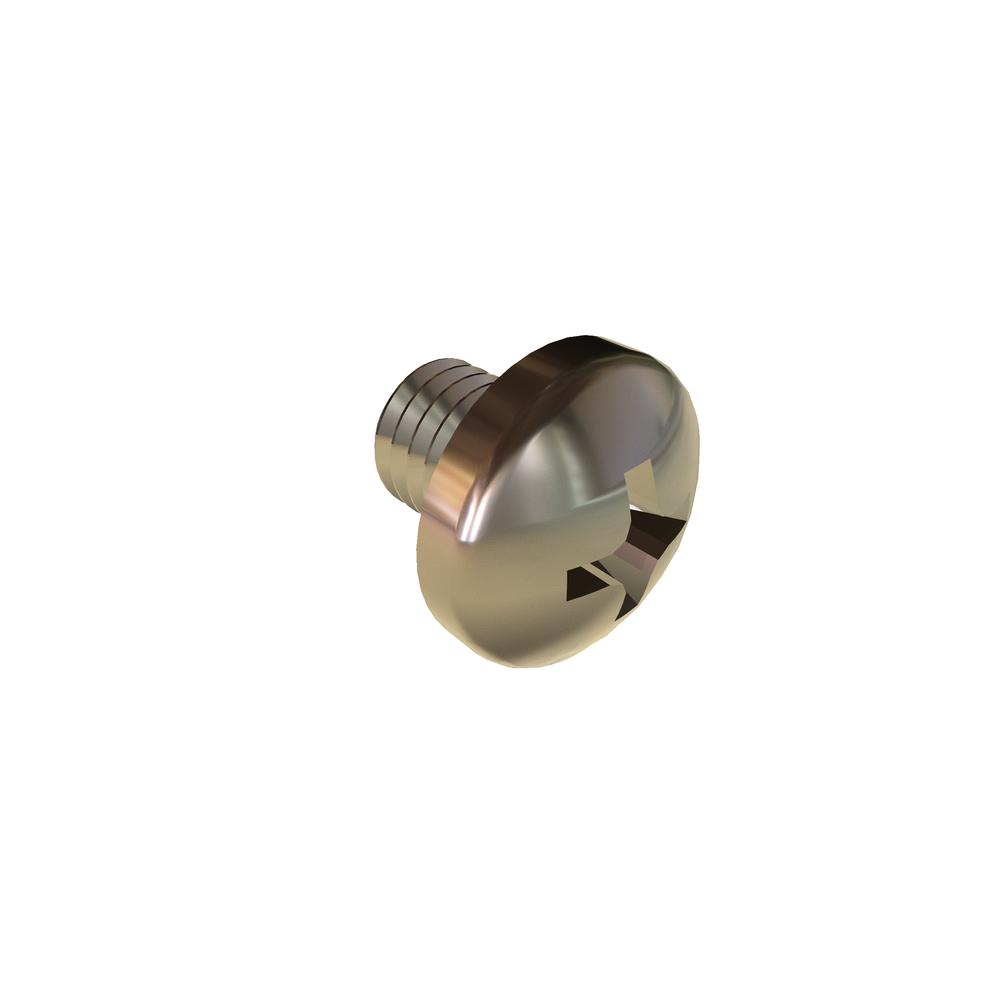

M5-.8 X 6 PH PAN SEELSKREW SST RoHS
.5C6PPMS/SEEL
| Item Id | .5C6PPMS/SEEL |
| Description | M5-.8 X 6 PH PAN SEELSKREW SST RoHS |
| Alternate Codes | 93627A610 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 93627A610 |
| Brand | APM HEXSEAL |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 9.50 mm |
| Head Diameter (Min.) | 9.10 mm |
| Head Height (Max.) | 3.70 mm |
| Head Height (Min.) | 3.40 mm |
| Head Radius (Min.) | 8.00 mm |
| Head Type | Pan |
| Material | Stainless Steel |
| Meets (Standard) | B18.6.7M |
| Nominal Diameter | 5.00 mm |
| O-Ring Diameter | 7.84 mm |
| O-Ring Thickness | 1.42 mm |
| Recess Depth (Max.) | 2.90 mm |
| Recess Depth (Min.) | 2.40 mm |
| Recess Diameter | 4.90 mm |
| RoHS | Compliant |
| Thread Size | M5x0.8 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
