.5C6PPMZN
M5-.8 X 6 PH PAN STL NI
Alternate Codes: N/A

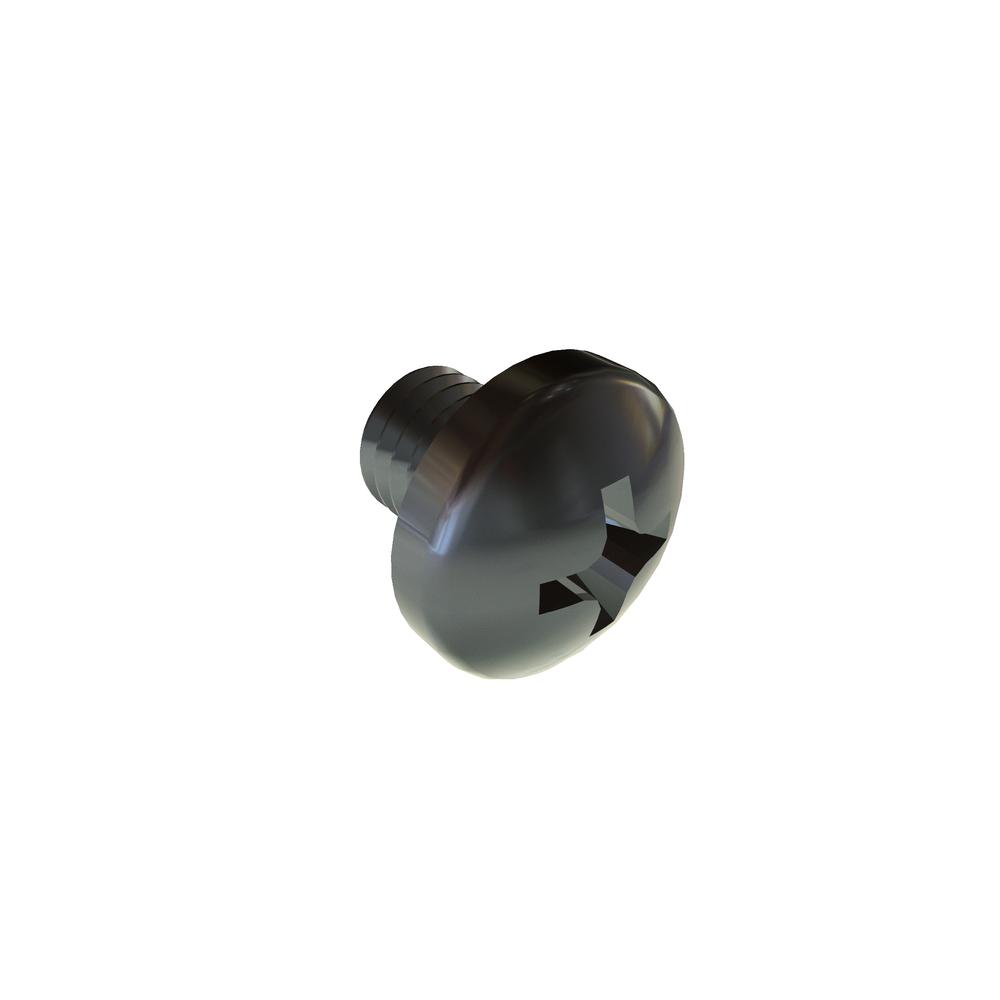

M5-.8 X 6 Phillips Pan Head Steel Nickel PLATE
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M5x0.8 |
| Material | Steel |
| Finish | Nickel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 5.00 mm |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 2 |
| Recess Diameter | 4.90 mm |
| Head Radius (Min.) | 8.00 mm |
| Body Diameter (Min.) | 4.36 mm |
| Recess Depth (Min.) | 2.40 mm |
| Recess Depth (Max.) | 2.90 mm |
| Brand | VARIED |
| Length | 6mm |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 5.00 mm |
| Head Diameter (Max.) | 9.50 mm |
| Head Diameter (Min.) | 9.14 mm |
| Head Height (Max.) | 3.70 mm |
| Head Height (Min.) | 3.52 mm |
