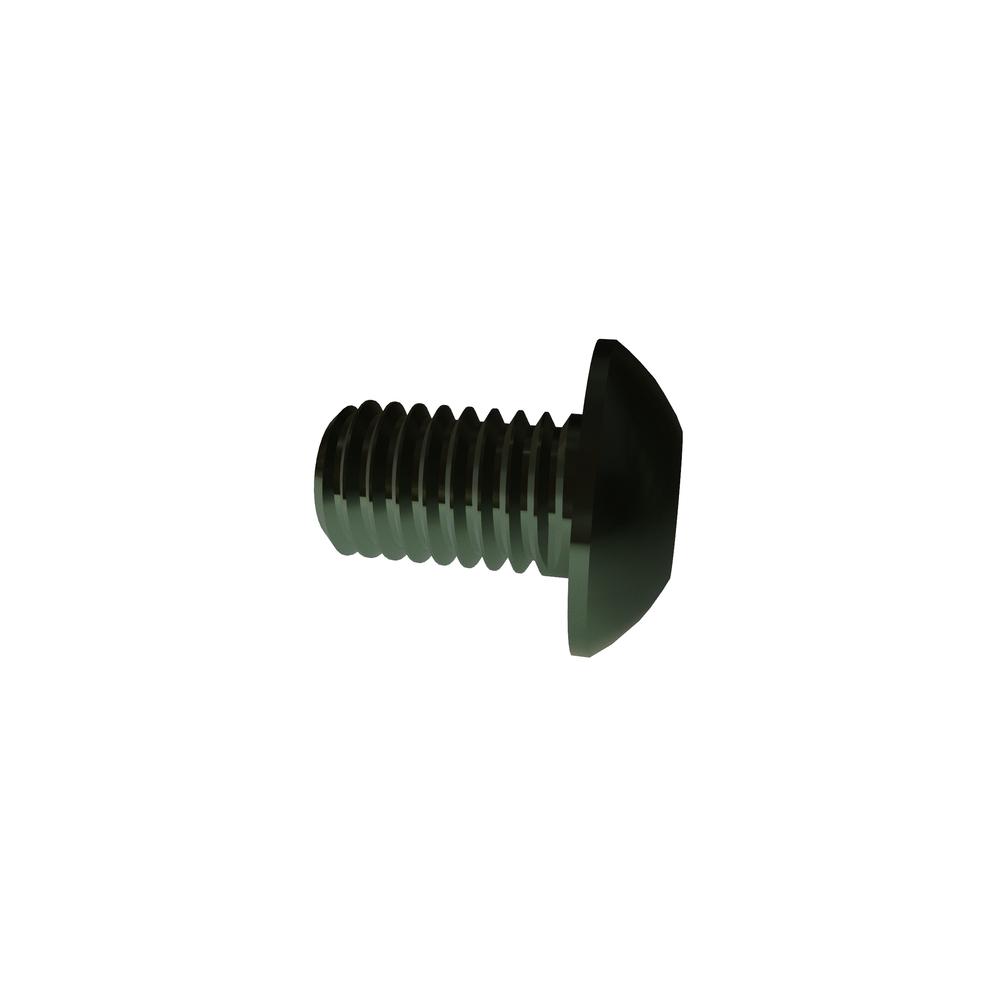

M5-.8 X 8 BUT HD TORX ALLOY ZN CR3
.5C8BHXAR
| Item Id | .5C8BHXAR |
| Description | M5-.8 X 8 BUT HD TORX 10.9 ALLOY ZN CR3 |
| Extended Description | RoHS |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | T25 |
| Drive Type | Torx Socket |
| Fillet Transition Diameter (Max.) | 5.70 mm |
| Fillet Transition Diameter (Min.) | 5.40 mm |
| Finish | Zinc Clear |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 9.50 mm |
| Head Diameter (Min.) | 9.14 mm |
| Head Height (Max.) | 2.75 mm |
| Head Height (Min.) | 2.50 mm |
| Head Side Height (Ref.) | 0.50 mm |
| Head Type | Button |
| Key Engagement | 1.40 mm |
| Length | 8mm |
| Material | Alloy Steel |
| Meets (Standard) | ASME B18.3.4M |
| Nominal Diameter | 5 mm |
| RoHS | Compliant |
| Thread Size | M5x0.8 |
| Thread Type | Metric Coarse |
| Torx Socket Size | 4.43 mm |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
