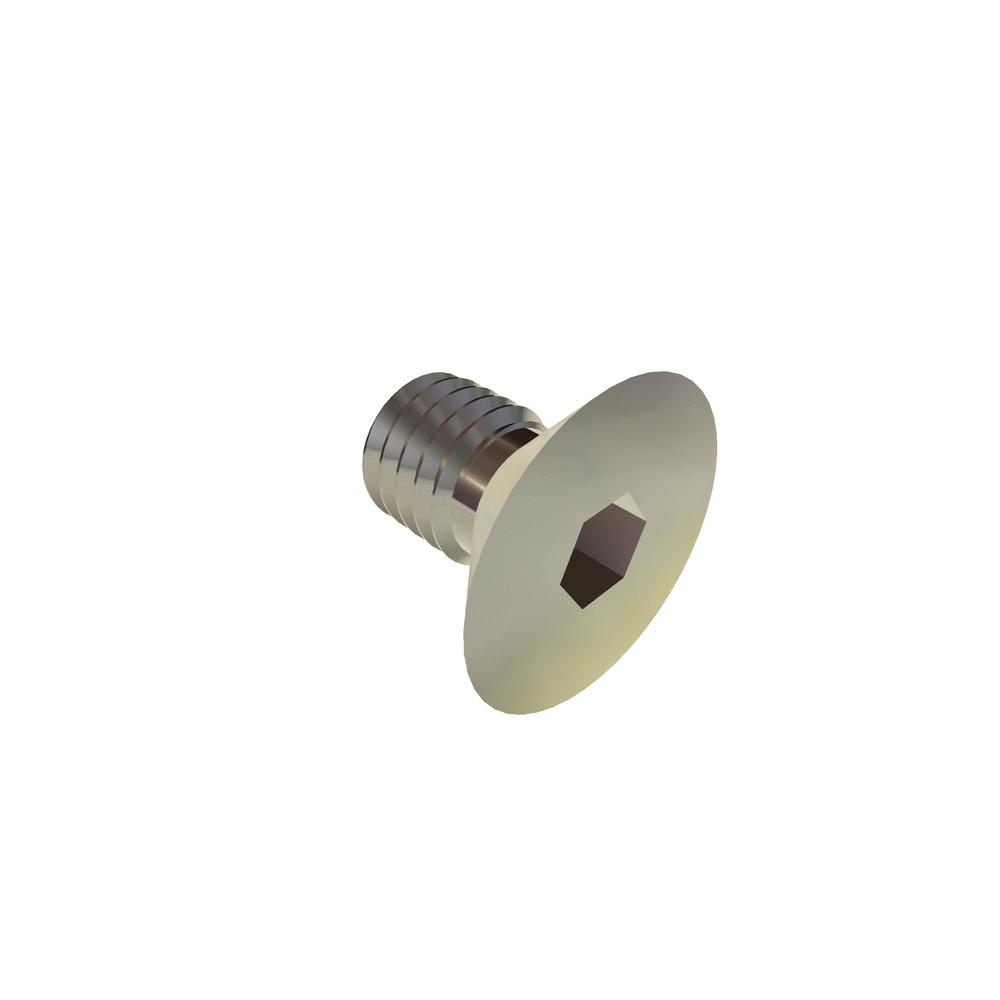

Image for reference purposes only. Actual product may vary.
.5C8FHCS
M5-.8 X 8 FLAT SOC SST RoHS
Alternate Codes: 92125A206
M5-.8 X 8 Flat Socket DIN7991 Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.239 | $0.126 | $0.100 | $0.092 | $0.077 | Larger Quantities |
In Stock
Maximum stock already in cart
| Nominal Diameter | M5 |
| Length | 8mm |
| Thread Size | M5x0.8 |
| Finish | Plain |
| Material | Stainless Steel |
| Head Type | Flat |
| Drive Type | Hex Socket |
| Brand | VARIED |
| RoHS | Compliant |
| Hex Socket Size | 3.02 - 3.1 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Key Engagement | 2.05 - 2.3 mm |
| Body Diameter | 5.00 mm |
| Additional Industry Cross Reference | 92125A206 |
| Head Diameter (Max.) | 10.00 mm |
| Head Diameter (Min.) | 9.64 mm |
