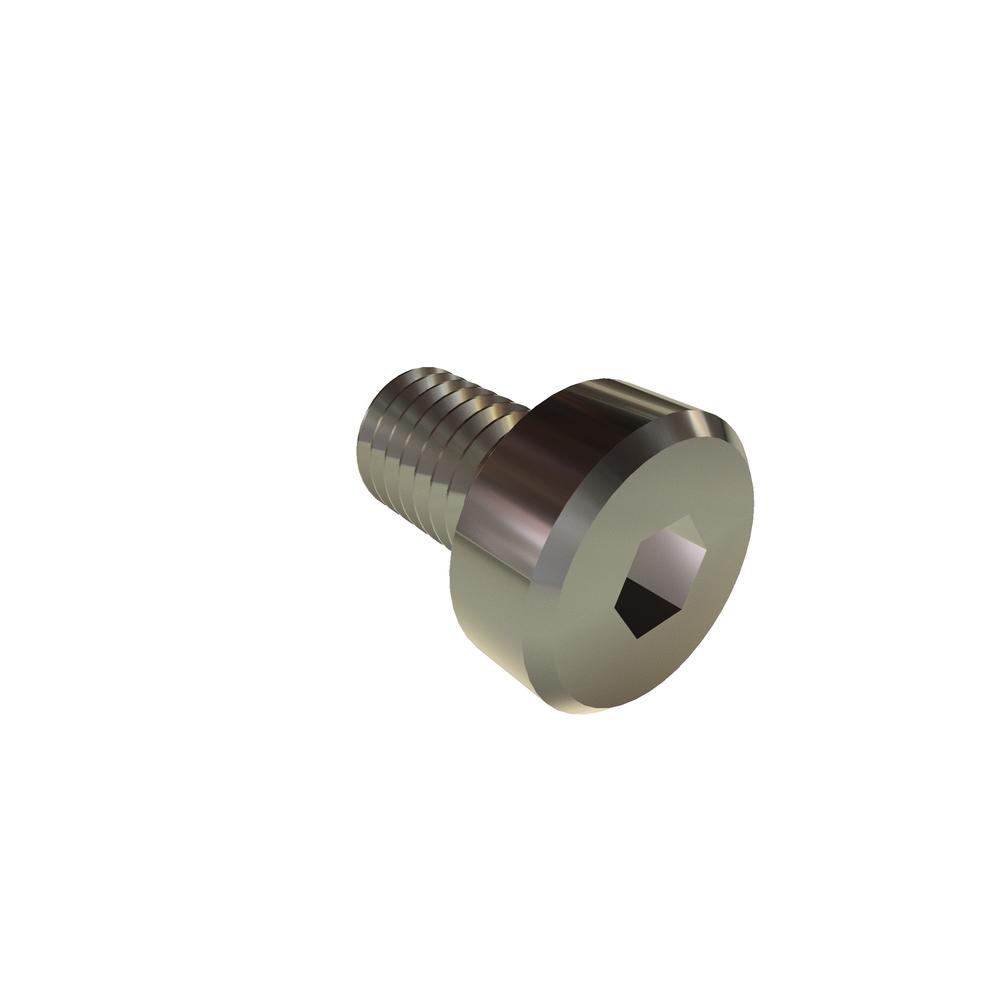

M5-.8 X 8 LOW HD SOC CAP SST
.5C8LHCS
| Item Id | .5C8LHCS |
| Description | M5-.8 X 8 LOW HD SOC CAP SST RoHS |
| Alternate Codes | 90666A121, 92855A507 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92855A507 |
| Body Diameter (Max.) | 5.00 mm |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Finish | Plain |
| Head Diameter (Max.) | 8.50 mm |
| Head Diameter (Min.) | 8.28 mm |
| Head Height (Max.) | 3.50 mm |
| Head Height (Min.) | 3.32 mm |
| Head Type | Low |
| Hex Socket Size | 3.02 mm |
| Key Engagement (Min.) | 2.58 mm |
| Length | -40C to 85C (-40F to 185F) |
| Length | 8 mm |
| Length | 8mm |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.3.1M |
| Thread Size | M5x0.8 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
