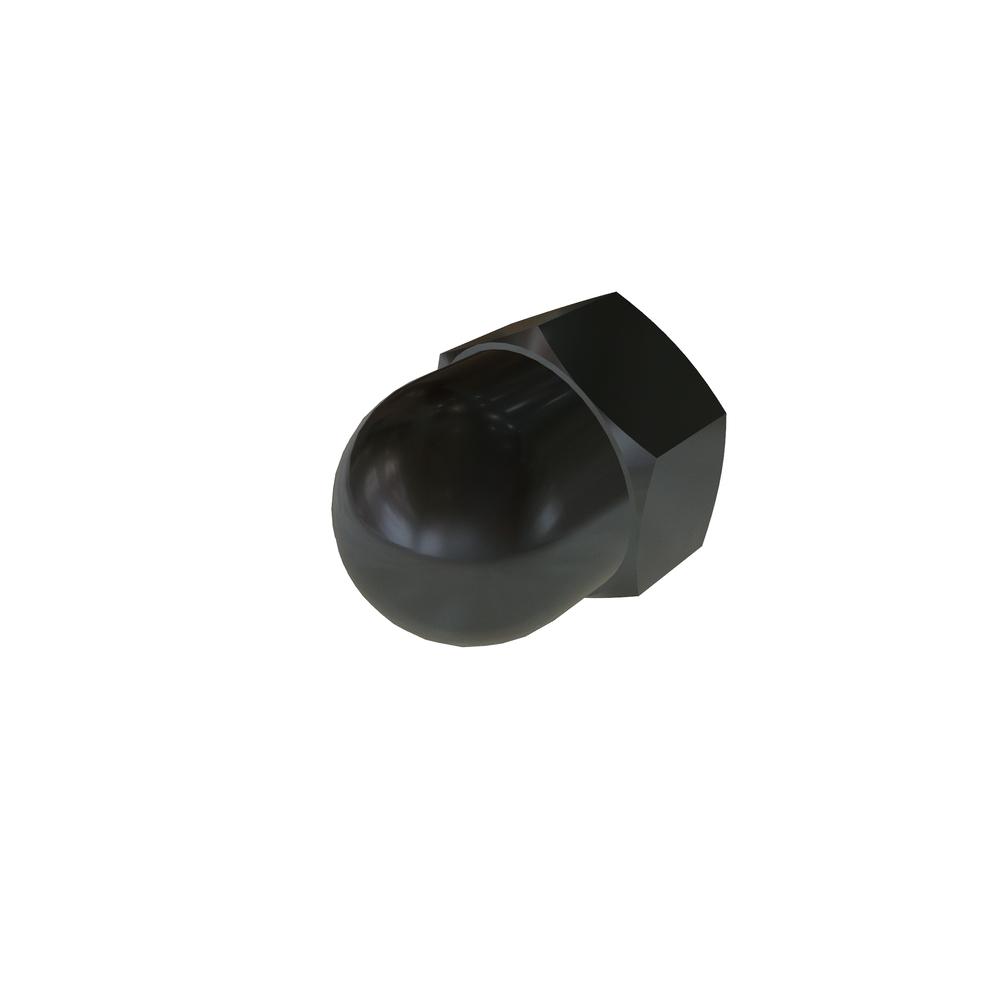

Image for reference purposes only. Actual product may vary.
.5CANTZR
M5-.8 ACORN NUT STL ZN CR3
Alternate Codes: N/A
M5-.8 Acorn Nut Steel Zinc Plated RoHS3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M5x0.8 |
| Material | Steel |
| Type | Acorn Nut |
| Depth | 7.21 mm |
| Nominal Diameter | 5.00 mm |
| Overall Length L (Max.) | 10.00 mm |
| Overall Length L (Min.) | 9.42 mm |
| Finish | Zinc Cr3 |
| Head Height (Min.) | 3.70 mm |
| Head Height (Max.) | 4.00 mm |
| Width Across Flat (Max.) | 8.00 mm |
| Width Across Flat (Min.) | 7.64 mm |
| Units | Metric |
| Body Diameter | 7.50 mm |
| Brand | VARIED |
| RoHS | Compliant |
