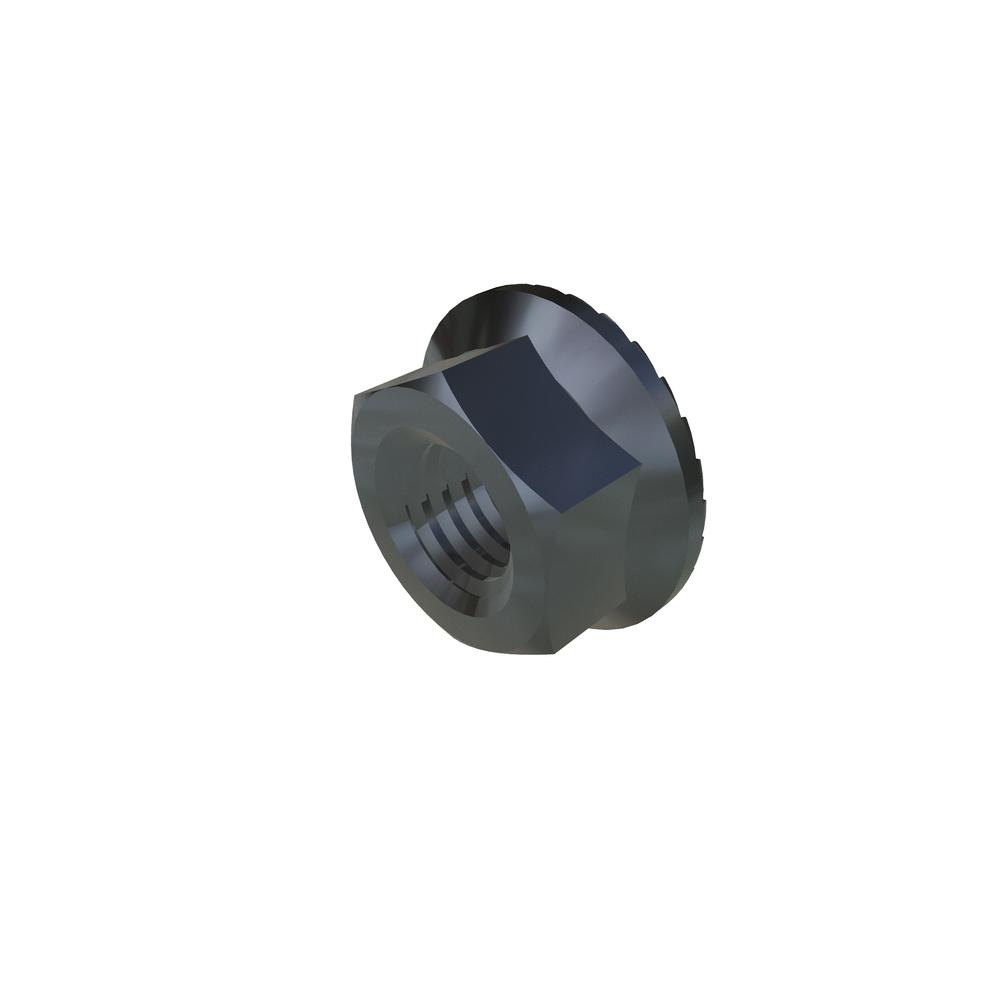

Image for reference purposes only. Actual product may vary.
.5CFLNZR/W
M5-.8 FLANGE NUT WHIZLOK STL CR3 ZNC
Alternate Codes: N/A
M5-.8 Flange Nut Serrated DIN6923-8 Steel Zinc Plated RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.333 | $0.175 | $0.139 | $0.128 | $0.107 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | M5x0.8 |
| Type | Flange Nut Whizlok |
| Material | Steel |
| Finish | Zinc Cr3 |
| Wrenching Height (Min.) | 2.50 mm |
| Width Across Flat (Max.) | 8.00 mm |
| Width Across Flat (Min.) | 7.78 mm |
| Nominal Diameter | 5.00 mm |
| Flange Diameter (Min.) | 9.80 mm |
| Flange Diameter (Max.) | 11.80 mm |
| Flange Thickness (Min.) | 1.00 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Brand | VARIED |
| Meets (Standard) | ISO 4161 |
| Head Thickness (Max.) | 5.00 mm |
| Head Thickness (Min.) | 4.70 mm |
