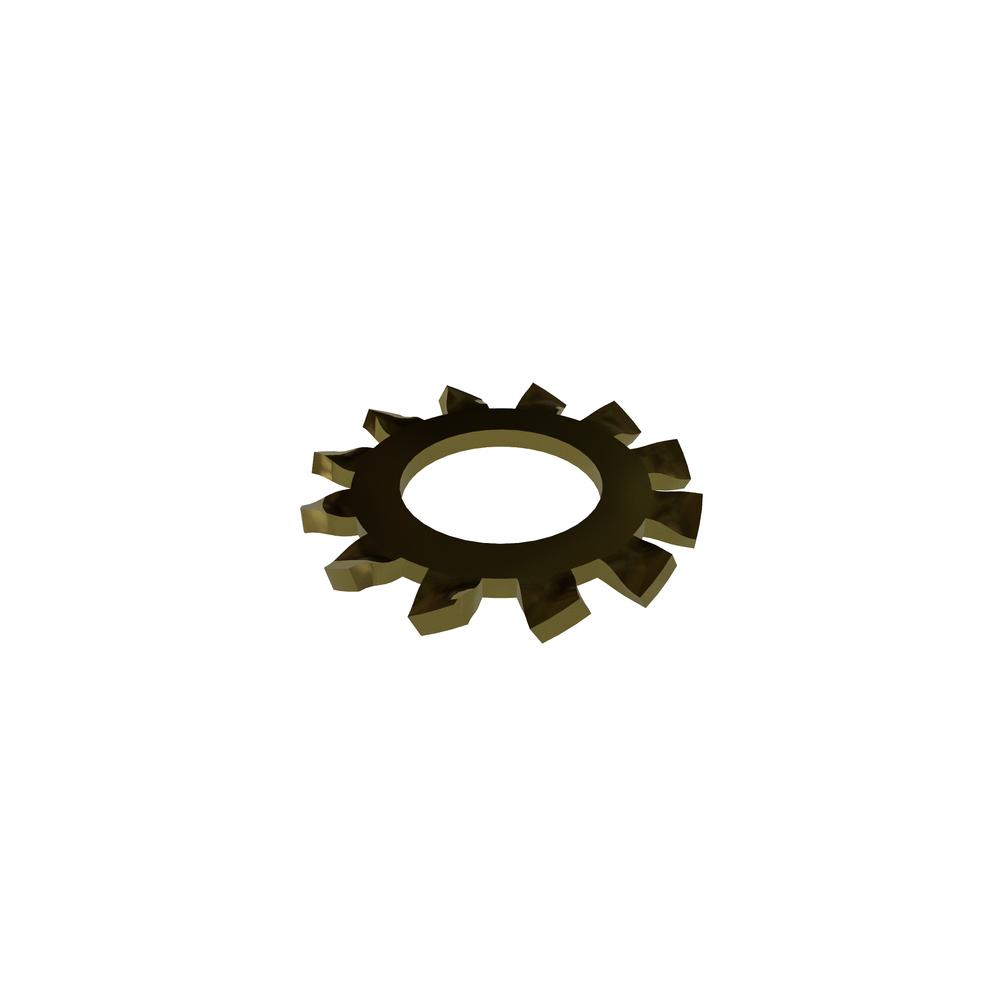

M5 EXT TOOTH L/W STL ZN CR3
.5NELWZR
| Item Id | .5NELWZR |
| Description | M5 EXT TOOTH L/W STL ZN RoHS |
| Extended Description | DIN6797-A |
| Packaging | EA |
| Brand | VARIED |
| Finish | Zinc Cr3 |
| ID (Max.) | 5.35 mm |
| ID (Max.) | 5.48 mm |
| ID (Min.) | 5.15 mm |
| ID (Min.) | 5.30 mm |
| Inside Diameter (Min.) | 5.15 mm |
| Material | Steel |
| OD | 495 |
| OD (Max.) | 10.00 mm |
| OD (Max.) | 10.50 mm |
| OD (Min.) | 10.00 mm |
| OD (Min.) | 9.60 mm |
| Outside Diameter (Max.) | 10.50 mm |
| RoHS | Compliant |
| Thickness | 0.60 mm |
| Thickness (Max.) | 0.65 mm |
| Thickness (Min.) | 0.50 mm |
| Type | External Tooth Lock Washer |
| Units | Metric |
| Washer Size | M5 |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
