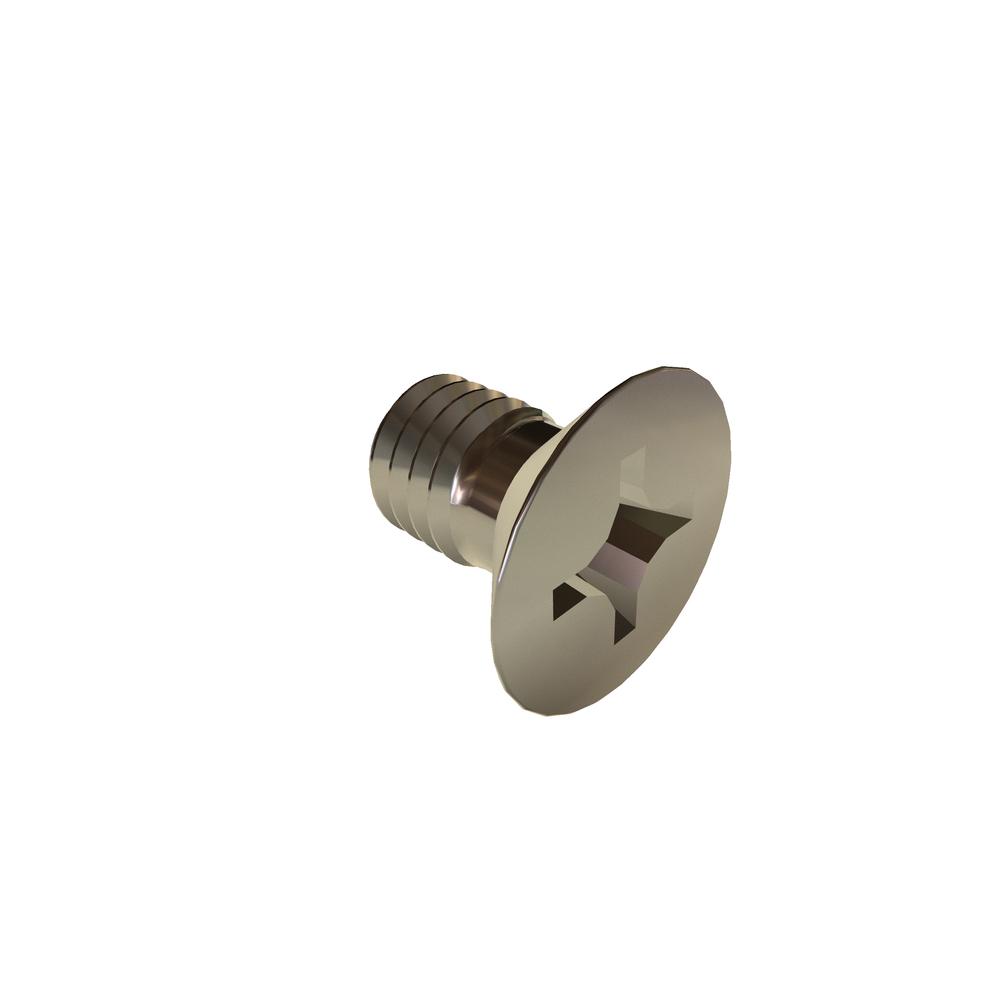

M6-1.0 X 10 PHIL FLAT VENTED GRIT
.6C10PFMS/VG
| Item Id | .6C10PFMS/VG |
| Description | M6-1.0 X 10 PHIL FLAT VENTED GRIT |
| Extended Description | BLASTED SST RoHS |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 3 |
| Drive Type | Phillips |
| Finish | Grit |
| Head Diameter (Max.) | 11.30 mm |
| Head Diameter (Min.) | 10.87 mm |
| Head Height | 3.30 mm |
| Length | 10mm |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 6.00 mm |
| Recess Depth (Max.) | 3.50 mm |
| Recess Depth (Min.) | 3.0 mm |
| Thread Size | M6x1 |
| Thread Type | Metric Coarse |
| Type | Flat Head Vented |
| Units | Metric |
| Vent Hole Diameter | 2.00 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
