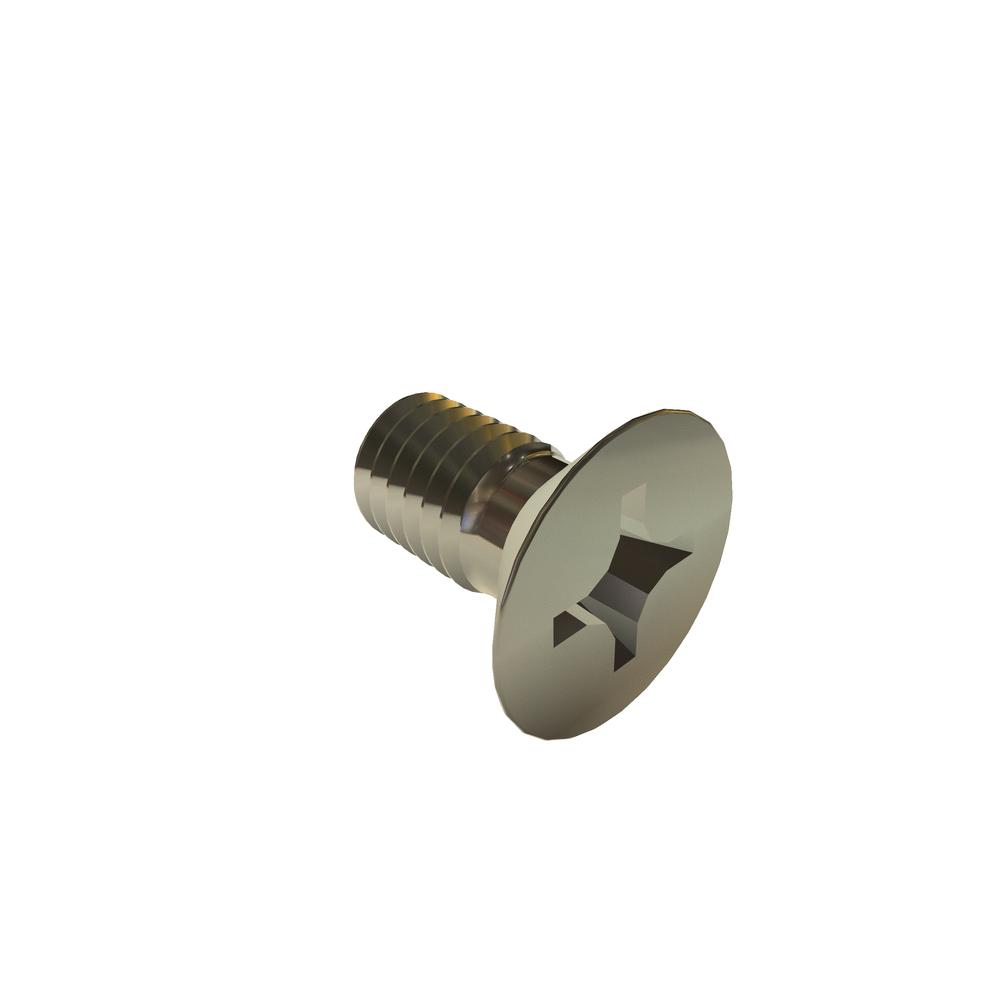

.6C12PFMS
M6-1.0 X 12 PHIL FLAT SST RoHS
Alternate Codes: 3690-02576
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|---|
| $0.235 | $0.124 | $0.098 | $0.090 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M6x1 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 6.00 mm |
| Head Type | Flat |
| Drive Type | Phillips |
| Drive Size | 3 |
| Recess Diameter | 6.8 mm |
| Head Height | 3.30 mm |
| Recess Depth (Min.) | 3.0 mm |
| Recess Depth (Max.) | 3.50 mm |
| Recess Width | 1.12 mm |
| Brand | VARIED |
| Additional Industry Cross Reference | 92010A424 |
| Length | 12mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 11.30 mm |
| Head Diameter (Min.) | 10.87 mm |
