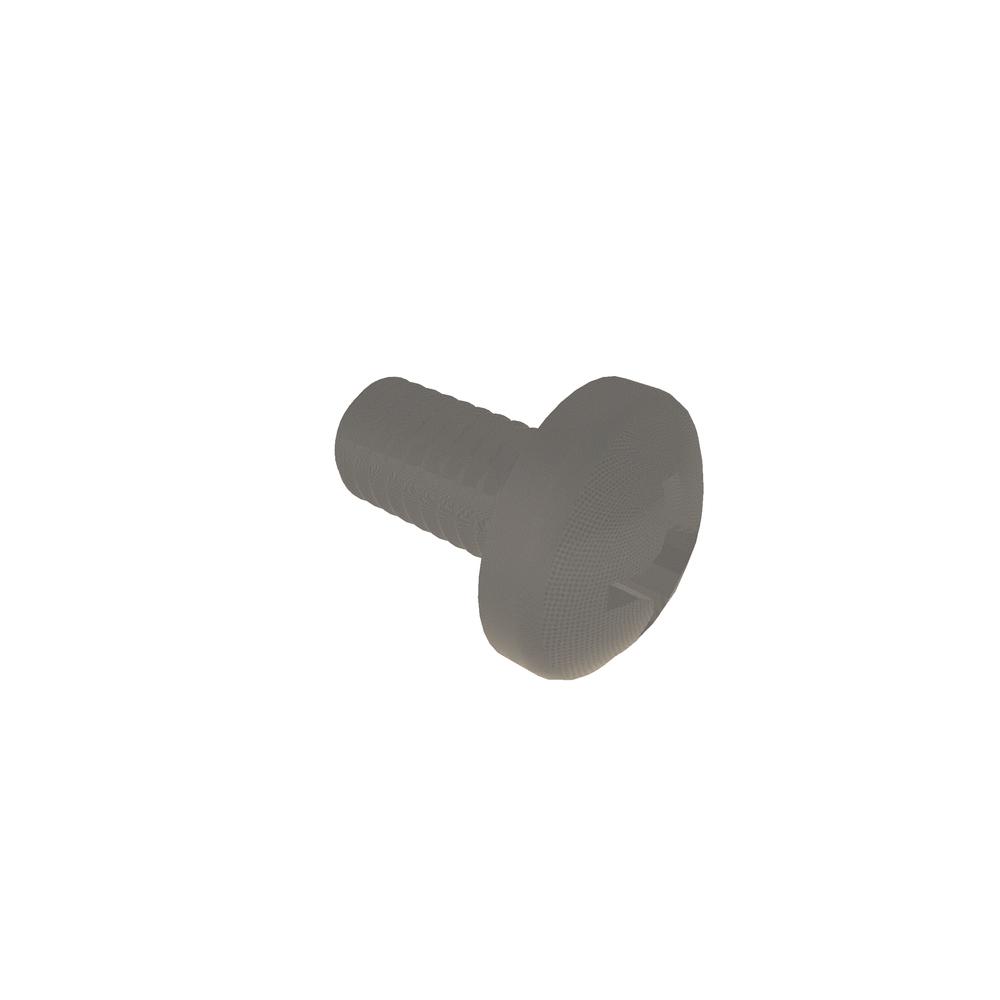

Image for reference purposes only. Actual product may vary.
.6C12PPMN
M6-1.0 X 12 PH PAN NYL
Alternate Codes: N/A
M6-1.0 X 12 Phillips Pan Head Nylon RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 12mm |
| Thread Size | M6x1 |
| Finish | Plain |
| Brand | VARIED |
| Drive Type | Phillips |
| Material | Nylon |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 6.00 mm |
| Head Type | Pan |
| Drive Size | 3 |
| Recess Diameter | 6.92 mm |
| Head Radius (Min.) | 10.00 mm |
| Body Diameter (Min.) | 5.21 mm |
| Recess Depth (Min.) | 3.10 mm |
| Recess Depth (Max.) | 3.60 mm |
| Additional Industry Cross Reference | 92492A746 |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 6.00 mm |
| Head Diameter (Max.) | 12.00 mm |
| Head Diameter (Min.) | 11.57 mm |
| Head Height (Max.) | 4.60 mm |
| Head Height (Min.) | 4.30 mm |
