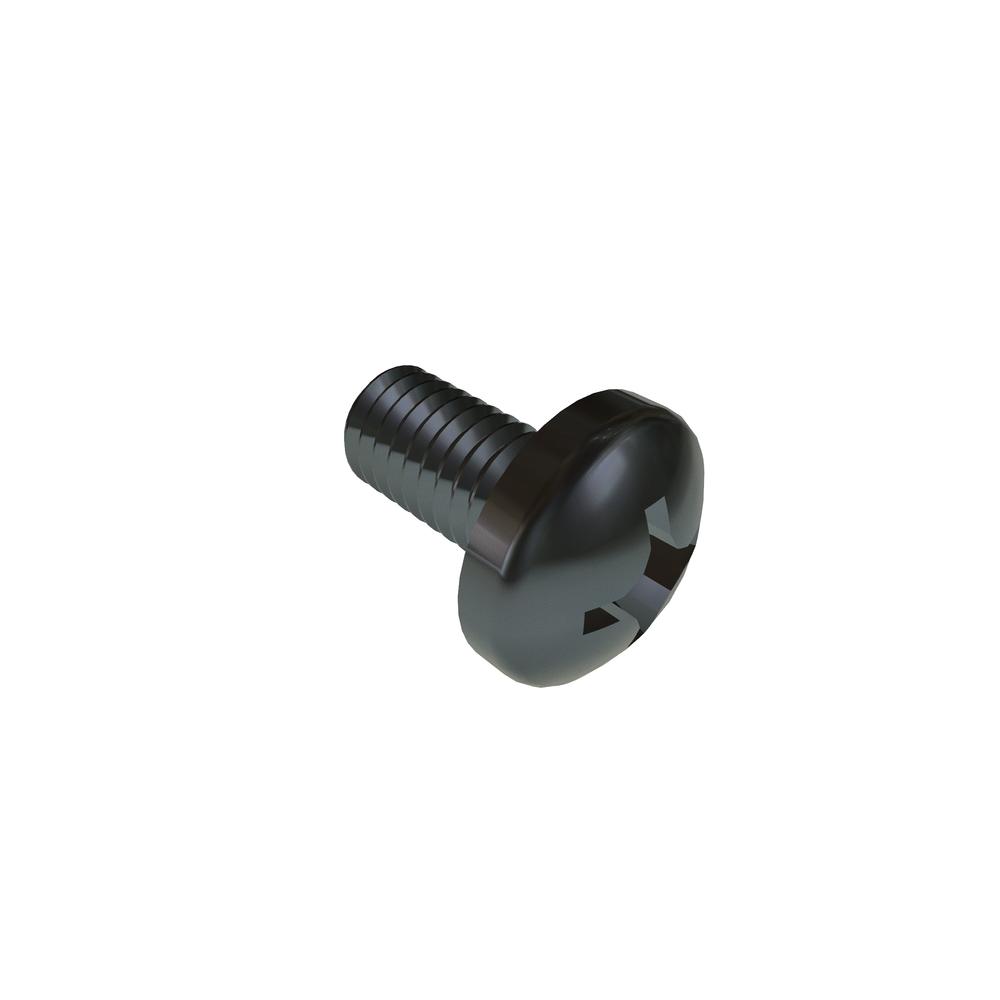

M6-1.0 X 12 PH PAN PATCH STL ZN CR3
.6C12PPMZR/P
| Item Id | .6C12PPMZR/P |
| Description | M6-1.0 X 12 PH PAN PATCH STL ZN CR3 |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 3 |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 12.00 mm |
| Head Diameter (Min.) | 11.50 mm |
| Head Height (Max.) | 4.60 mm |
| Head Height (Min.) | 4.30 mm |
| Head Radius (Min.) | 10.00 mm |
| Head Type | Pan |
| Locking Element | Patchlock |
| Material | Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 6.00 mm |
| Penetration Depth (Max.) | 3.60 mm |
| Penetration Depth (Min.) | 3.10 mm |
| Recess Diameter | 6.92 mm |
| Thread Size | M6x1 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
