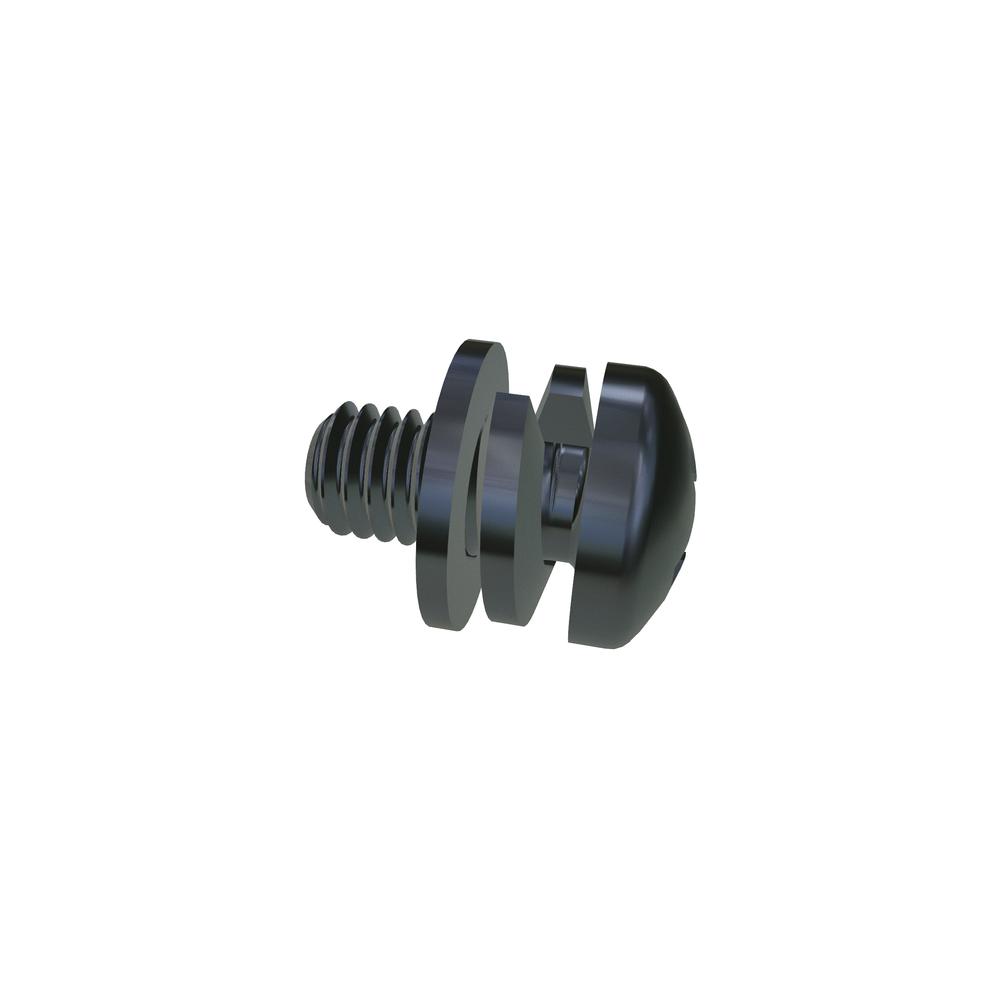

Image for reference purposes only. Actual product may vary.
.6C12PPSZR
M6-1.0 X 12 PH PAN DBL SEM SL/FW STL ZN
Alternate Codes: N/A
M6-1.0 X 12 Phillips Pan Head Double Sems Split LockWasher/Flat Washer JIS B1188 Steel Zinc Plated RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.614 | $0.338 | $0.282 | $0.241 | $0.199 | Larger Quantities |
In Stock
Maximum stock already in cart
| Length | 12mm |
| Thread Size | M6x1 |
| Finish | Zinc Cr3 |
| Brand | VARIED |
| Recess Diameter | 6.92 mm |
| Washer Type | Split Lock Washer and Flat Washer |
| Drive Type | Phillips |
| Material | Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 6.00 mm |
| Head Type | Pan |
| Lock Washer Outside Diameter (Min.) | 11.02 mm |
| Lock Washer Outside Diameter (Max.) | 11.30 mm |
| Drive Size | 3 |
| Penetration Depth (Min.) | 3.10 mm |
| Penetration Depth (Max.) | 3.60 mm |
| Head Radius (Min.) | 10.00 mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 12.00 mm |
| Head Diameter (Min.) | 11.50 mm |
| Head Height (Max.) | 4.60 mm |
| Head Height (Min.) | 4.30 mm |
| Lock Washer Thickness (Min.) | 1.96 mm |
| Flat Washer Thickness (Min.) | 1.75 mm |
| Flat Washer Thickness (Max.) | 1.20 mm |
| Flat Washer Outside Diameter (Min.) | 18.80 mm |
| Flat Washer Outside Diameter Max | 18.28 mm |
| Lock Washer Inside Diameter (Min.) | 5.44 mm |
| Lock Washer Inside Diameter (Max.) | 5.62 mm |
| Lock Washer Width (Min.) | 2.79 mm |
