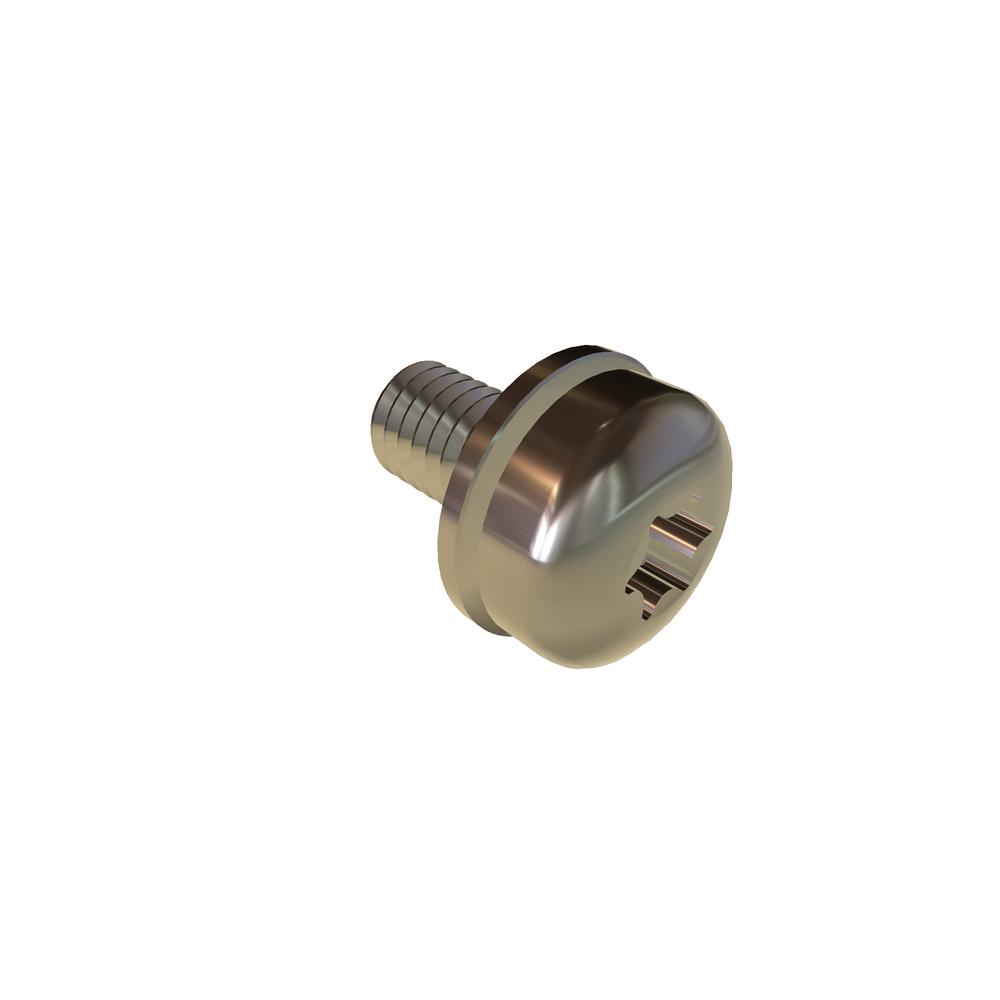

M6-1.0 X 12 TORX PAN CREST CUP SEMS SST
.6C12XPCS
| Item Id | .6C12XPCS |
| Description | M6-1.0 X 12 TORX PAN CREST CUP SEMS SST |
| Extended Description | RoHS |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | T30 |
| Drive Type | Torx |
| Finish | Plain |
| Head Diameter (Max.) | 12.00 mm |
| Head Diameter (Min.) | 11.57 mm |
| Head Height (Max.) | 4.60 mm |
| Head Height (Min.) | 4.30 mm |
| Head Radius (Min.) | 10.00 mm |
| Head Type | Pan |
| Length | 12mm |
| Lock Washer Height (Max.) | 2.54 mm |
| Lock Washer Height (Min.) | 2.00 mm |
| Lock Washer Outside Diameter (Max.) | 12.90 mm |
| Lock Washer Outside Diameter (Min.) | 12.57 mm |
| Lock Washer Thickness (Max.) | 1.27 mm |
| Lock Washer Thickness (Min.) | 1.00 mm |
| Material | Stainless Steel |
| Meets (Standard) | ISO 14583 |
| Nominal Diameter | 6.00 mm |
| Penetration Depth (Max.) | 2.42 mm |
| Penetration Depth (Min.) | 2.02 mm |
| Recess Diameter | 5.52 mm |
| RoHS | Compliant |
| Thread Size | M6x1 |
| Thread Type | Metric Coarse |
| Units | Metric |
| Washer Type | Crest Cup Washer |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
