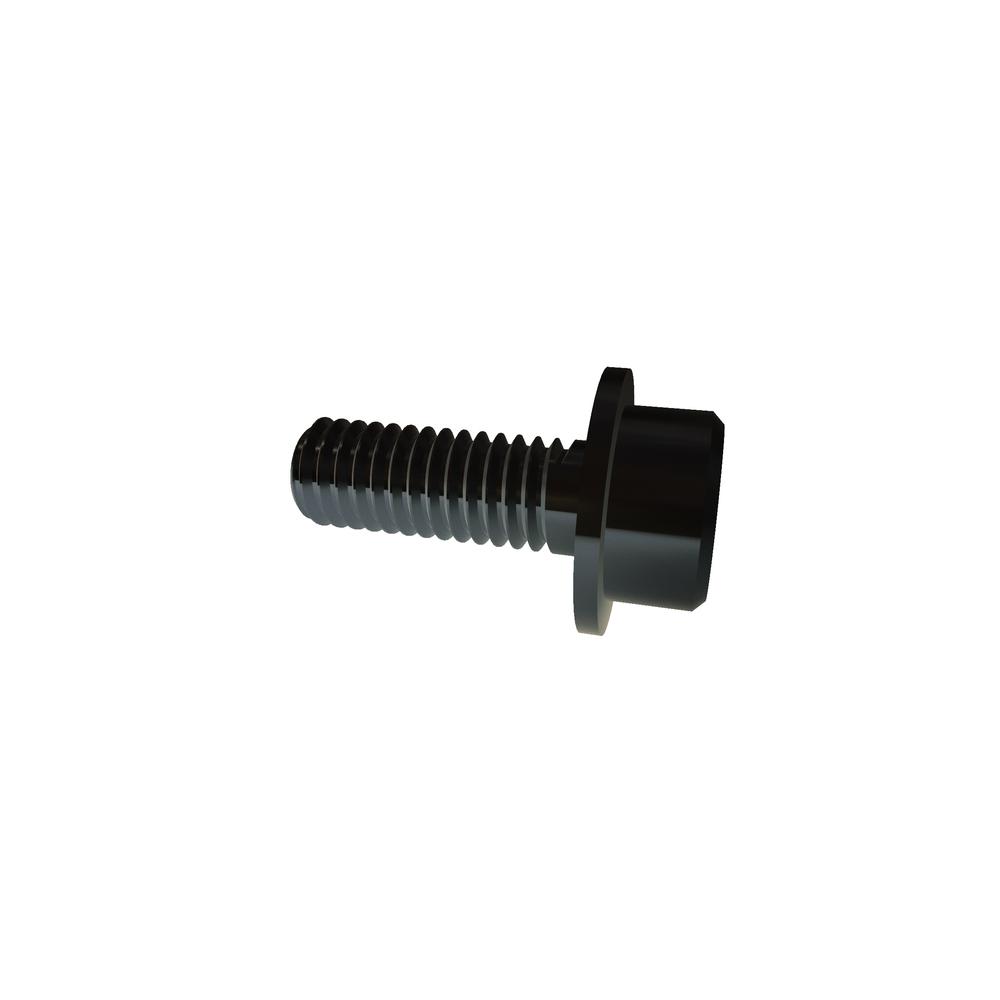

M6-1.0 X 16 FLANGE SOC CAP 12.9 ALLOY

.6C16FLSA

Item Id.6C16FLSA
DescriptionM6-1.0 X 16 FLANGE SOC CAP 12.9 ALLOY
Alternate Codes.6C16FSHA
Extended DescriptionRoHS
PackagingEA
Body Diameter (Max.)6.00 mm
BrandVARIED
Drive TypeHex Socket
FinishPlain
Flange Diameter (Max.)13.60 mm
Flange Diameter (Min.)12.90 mm
Flange Thickness (Max.)1.20 mm
Flange Thickness (Min.)1.00 mm
Grade12.9
Head Diameter (Max.)10.00 mm
Head Diameter (Min.)9.74 mm
Head Height (Max.)6.00 mm
Head Height (Min.)5.85 mm
Head TypeFlanged head
Hex Socket Size5.00 mm
Key Engagement (Min.)3.00 mm
Length16mm
MaterialAlloy Steel
Meets (Standard)ASME B18.3.1M
Thread SizeM6x1
Thread SizeM6x1.0
Thread TypeMetric Coarse
UnitsMetric
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
