.6C16HFBWR

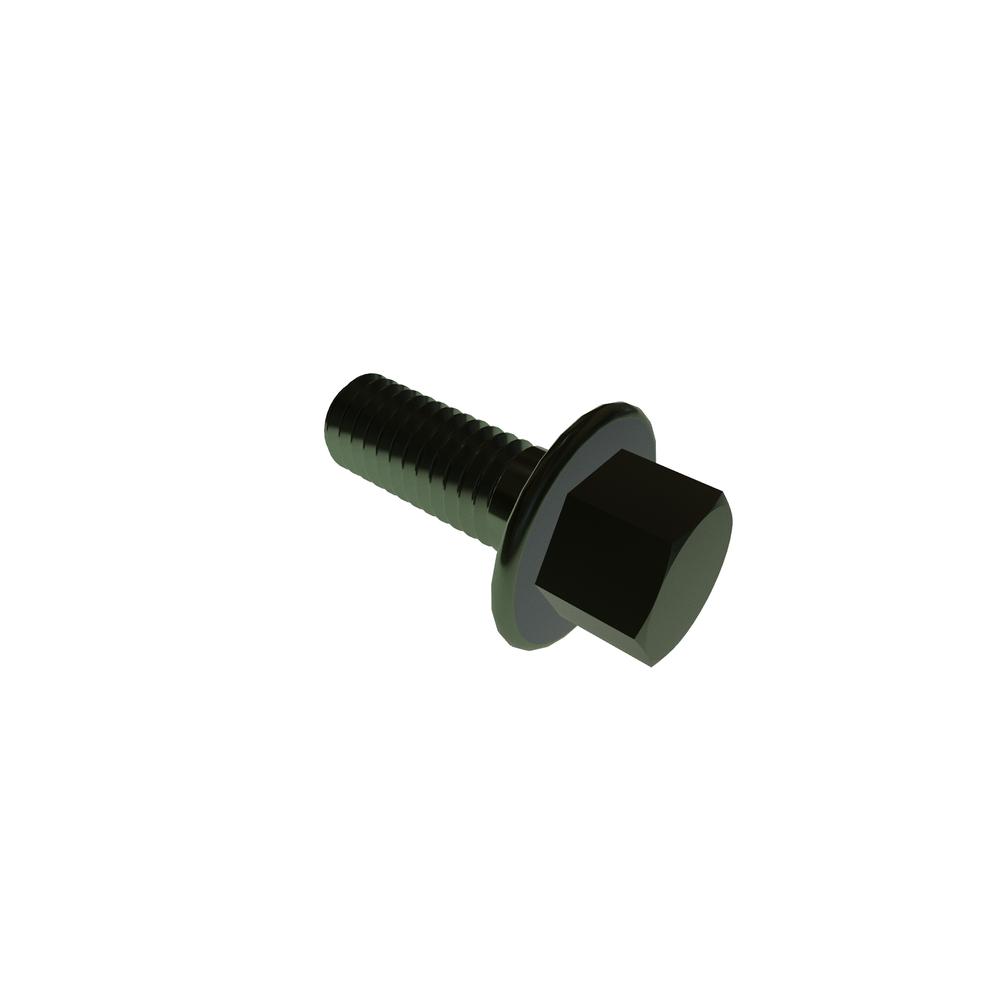

M6-1.0 X 16 HX FLANGE BOLT 8.8 ZN CR3
Alternate Codes: N/A
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.586 | $0.322 | $0.269 | $0.230 | $0.190 | Larger Quantities |
In Stock
| Thread Size | M6x1 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 6.00 mm |
| Head Type | Hex Flange Bolt |
| Grade | 8.8 |
| Total Shank Diameter (Min.) | 5.82 mm |
| Total Shank Diameter (Max.) | 6.00 mm |
| Flange Diameter (Max.) | 13.60 mm |
| Wrenching Height (Min.) | 2.90 mm |
| Brand | VARIED |
| Type | Flange Bolt |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.2.3.4M |
| Head Height (Max.) | 6.90 mm |
| Width Across Flat (Max.) | 8.00 mm |
| Width Across Flat (Min.) | 7.64 mm |
| Thread Length | 13.0 mm |
| Total Length | 16mm |
