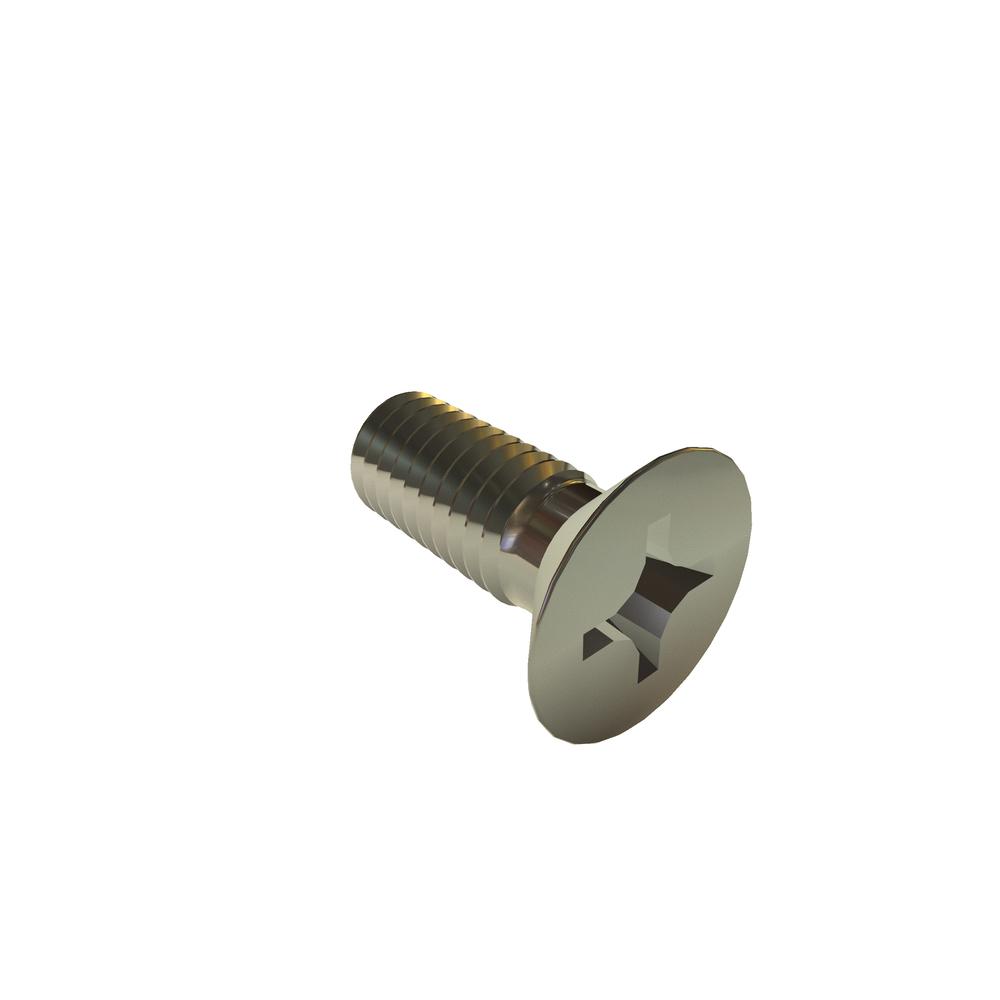

Image for reference purposes only. Actual product may vary.
.6C16PFMS
M6-1.0 X 16 PHIL FLAT SST RoHS
Alternate Codes: BN661 M6X16
M6-1.0 X 16 Phillips Flat Head DIN965 Stainless Steel RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M6x1 |
| Length | 16mm |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Finish | Plain |
| Brand | VARIED |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 6.00 mm |
| Head Type | Flat |
| Drive Size | 3 |
| Recess Diameter | 6.8 mm |
| Head Height | 3.30 mm |
| Recess Depth (Min.) | 3.0 mm |
| Recess Depth (Max.) | 3.50 mm |
| Recess Width | 1.12 mm |
| Additional Industry Cross Reference | 92010A426 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 11.30 mm |
| Head Diameter (Min.) | 10.87 mm |
