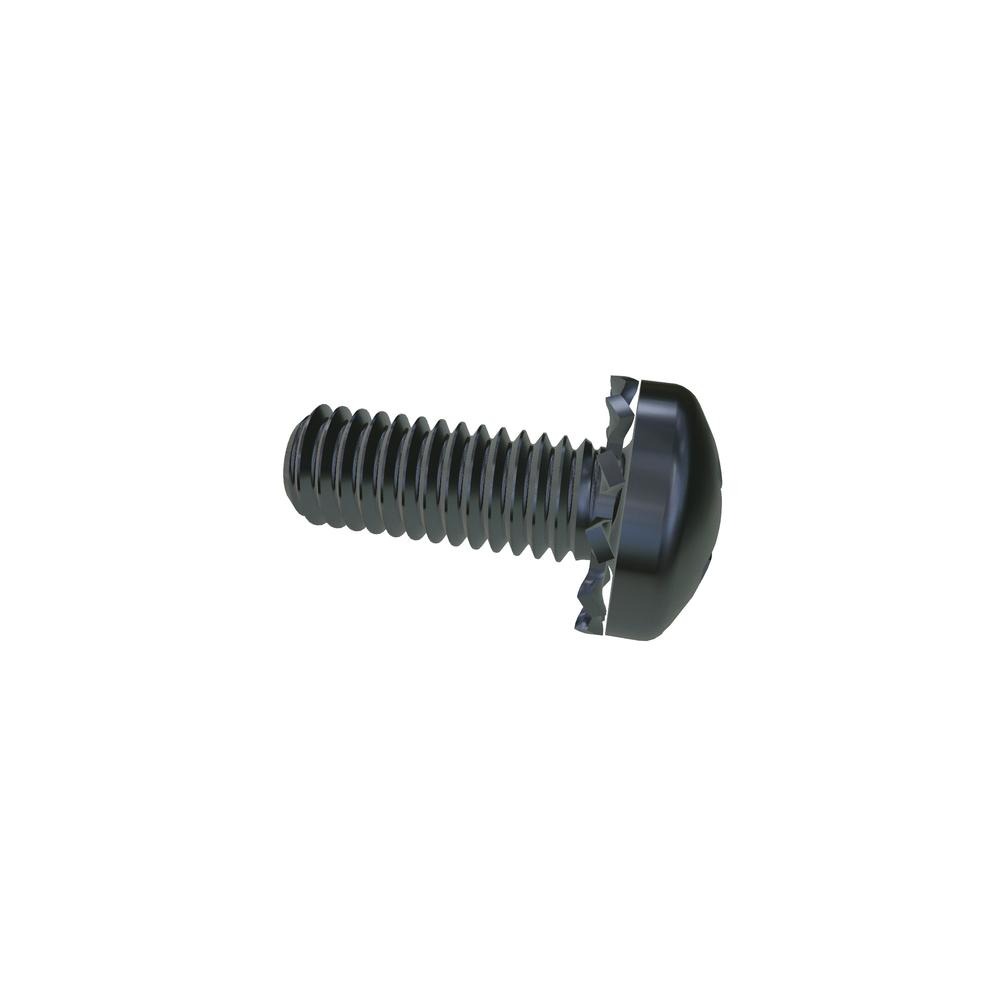

Image for reference purposes only. Actual product may vary.
.6C16PPEZR
M6-1.0 X 16 PHIL PAN EXT SEMS STL ZN CR3
Alternate Codes: N/A
M6-1.0 X 16 Phillips Pan Head External Sems Steel Zinc Plated RoHS3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 16mm |
| Thread Size | M6x1 |
| Finish | Zinc Cr3 |
| Brand | VARIED |
| Recess Diameter | 6.92 mm |
| Washer Type | External Tooth Lock Washer |
| Drive Type | Phillips |
| Material | Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 6.00 mm |
| Head Type | Pan |
| Lock Washer Thickness (Max.) | 0.75 mm |
| Lock Washer Outside Diameter (Min.) | 11.60 mm |
| Lock Washer Outside Diameter (Max.) | 12.10 mm |
| Drive Size | 3 |
| Penetration Depth (Min.) | 3.10 mm |
| Penetration Depth (Max.) | 3.60 mm |
| Head Radius (Min.) | 10.00 mm |
| Additional Industry Cross Reference | 90402A718 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 12.00 mm |
| Head Diameter (Min.) | 11.50 mm |
| Head Height (Max.) | 4.60 mm |
| Head Height (Min.) | 4.30 mm |
| Lock Washer Thickness (Min.) | 0.60 mm |
