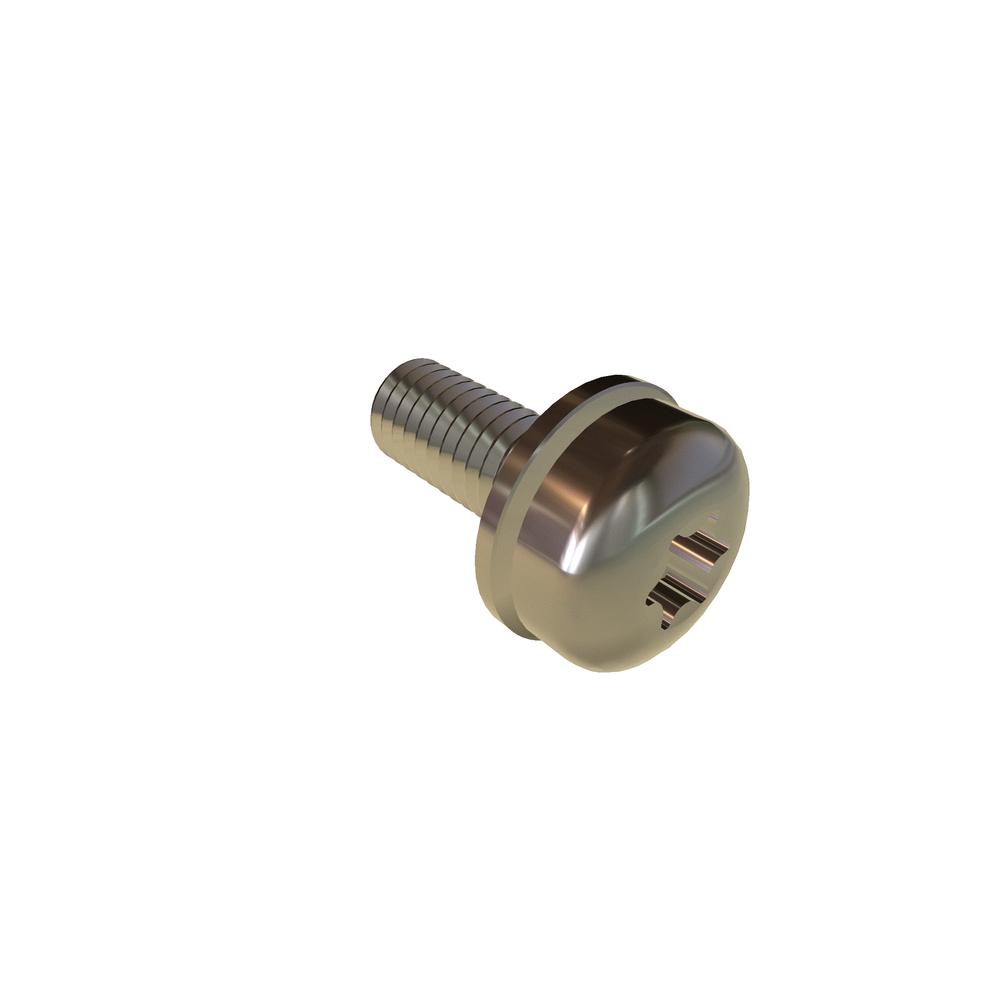

Image for reference purposes only. Actual product may vary.
.6C16XPCS
M6-1.0 X 16 TORX PAN CREST CUP SEMS SST
Alternate Codes: N/A
M6-1.0 X 16 Torx Pan Head Crest Cup Sems Stainless Steel RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 16mm |
| Thread Size | M6x1 |
| Finish | Plain |
| Brand | VARIED |
| Recess Diameter | 5.52 mm |
| Washer Type | Crest Cup Washer |
| Drive Type | Torx |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 6.00 mm |
| Head Type | Pan |
| Lock Washer Thickness (Max.) | 1.27 mm |
| Lock Washer Height (Min.) | 2.00 mm |
| Lock Washer Height (Max.) | 2.54 mm |
| Lock Washer Outside Diameter (Min.) | 12.57 mm |
| Lock Washer Outside Diameter (Max.) | 12.90 mm |
| Drive Size | T30 |
| Penetration Depth (Min.) | 2.02 mm |
| Penetration Depth (Max.) | 2.42 mm |
| Head Radius (Min.) | 10.00 mm |
| RoHS | Compliant |
| Meets (Standard) | ISO 14583 |
| Head Diameter (Max.) | 12.00 mm |
| Head Diameter (Min.) | 11.57 mm |
| Head Height (Max.) | 4.60 mm |
| Head Height (Min.) | 4.30 mm |
| Lock Washer Thickness (Min.) | 1.00 mm |
