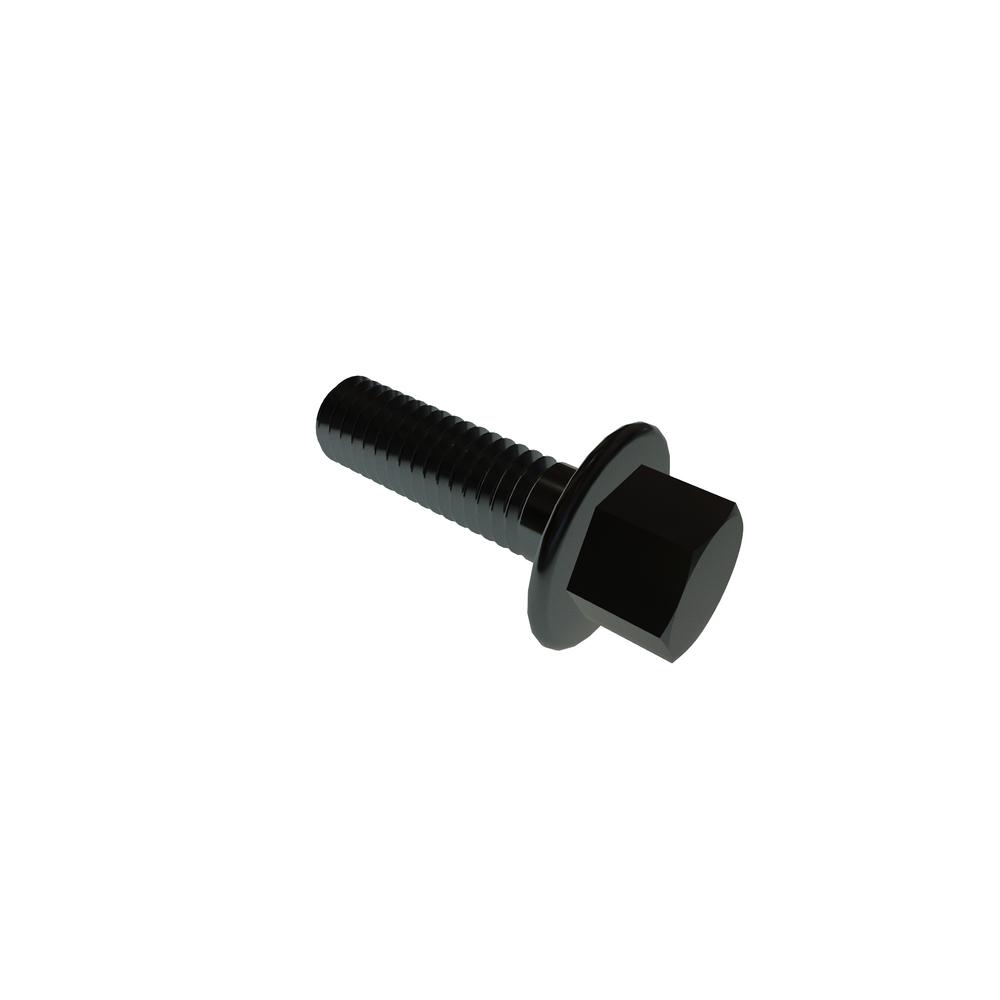

Image for reference purposes only. Actual product may vary.
.6C20HFBWR
M6-1.0 X 20 HX FLNG BOLT ZNC
Alternate Codes: N/A
M6-1.0 X 20 Serrated Hex Flange Bolt 8.8 Steel Zinc Plated RoHS
Pricing per Unit
| 1-99 pcs |
|---|
| $0.691 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Thread Size | M6x1 |
| Finish | Zinc Clear |
| Type | Serrated Flange Bolt |
| Wrenching Height (Min.) | 2.90 mm |
| Total Shank Diameter (Max.) | 6.00 mm |
| Total Length | 20mm |
| Thread Length | 17.0 mm |
| Grade | 8.8 |
| Material | Steel |
| Brand | VARIED |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 6.00 mm |
| Head Type | Hex Flange Bolt |
| Total Shank Diameter (Min.) | 5.82 mm |
| Flange Diameter (Max.) | 13.60 mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.2.3.4M |
| Head Height (Max.) | 6.90 mm |
| Width Across Flat (Max.) | 8.00 mm |
| Width Across Flat (Min.) | 7.64 mm |
