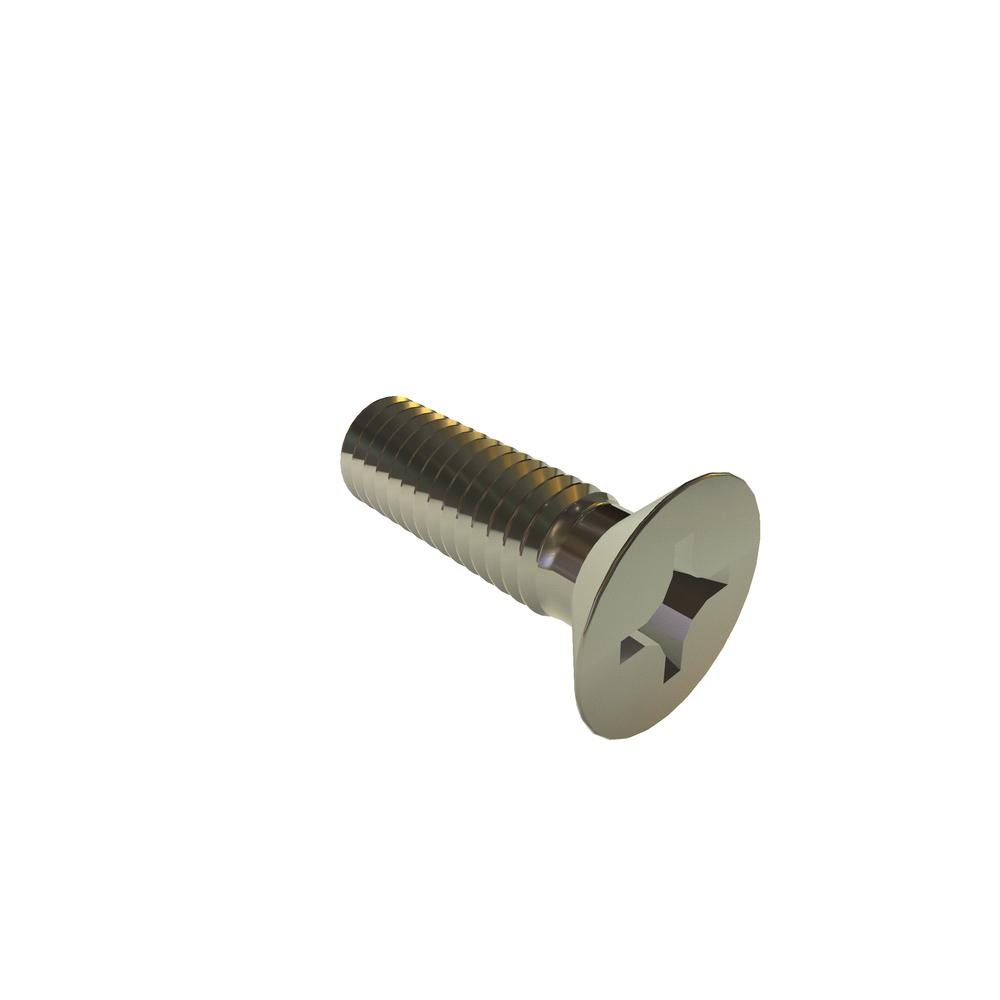

M6-1.0 X 20 PHIL FLAT SST RoHS
.6C20PFMS
| Item Id | .6C20PFMS |
| Description | M6-1.0 X 20 PHIL FLAT DIN965 SST RoHS |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92010A428 |
| Brand | VARIED |
| Drive Size | 3 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 11.30 mm |
| Head Diameter (Min.) | 10.87 mm |
| Head Height | 3.30 mm |
| Head Type | Flat |
| Length | 20mm |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 6.00 mm |
| Recess Depth (Max.) | 3.50 mm |
| Recess Depth (Min.) | 3.0 mm |
| Recess Diameter | 6.8 mm |
| Recess Width | 1.12 mm |
| RoHS | Compliant |
| Thread Size | M6x1 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
