.6C20PPMS

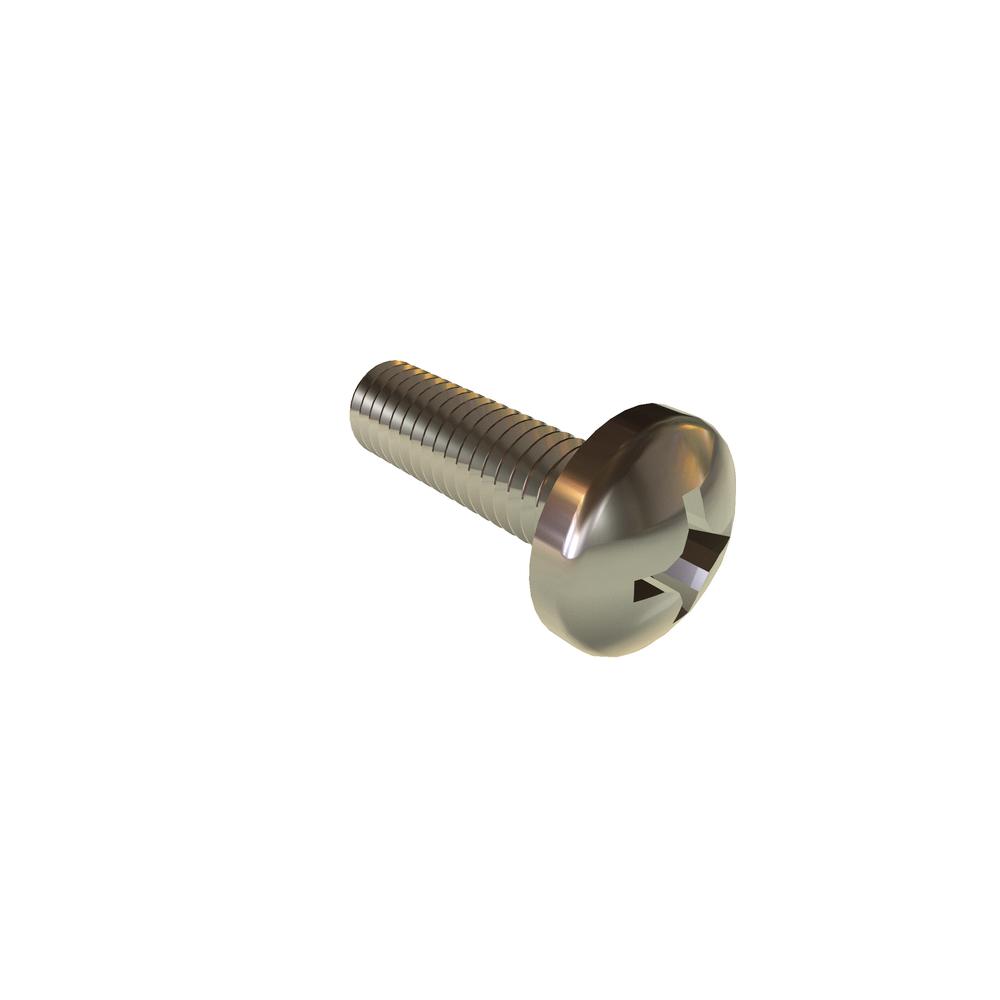

M6-1.0 X 20 PH PAN SST RoHS
Alternate Codes: 92000A428
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.589 | $0.324 | $0.270 | $0.231 | $0.191 | Larger Quantities |
In Stock
| Thread Size | M6x1 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 6.00 mm |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 3 |
| Recess Diameter | 6.92 mm |
| Head Radius (Min.) | 10.00 mm |
| Body Diameter (Min.) | 5.21 mm |
| Recess Depth (Min.) | 3.10 mm |
| Recess Depth (Max.) | 3.60 mm |
| Brand | VARIED |
| Additional Industry Cross Reference | 92000A428 92000A428 |
| Length | 20mm |
| RoHS | Compliant |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 6.00 mm |
| Head Diameter (Max.) | 12.00 mm |
| Head Diameter (Min.) | 11.57 mm |
| Head Height (Max.) | 4.60 mm |
| Head Height (Min.) | 4.30 mm |
