.6C20SHCWR

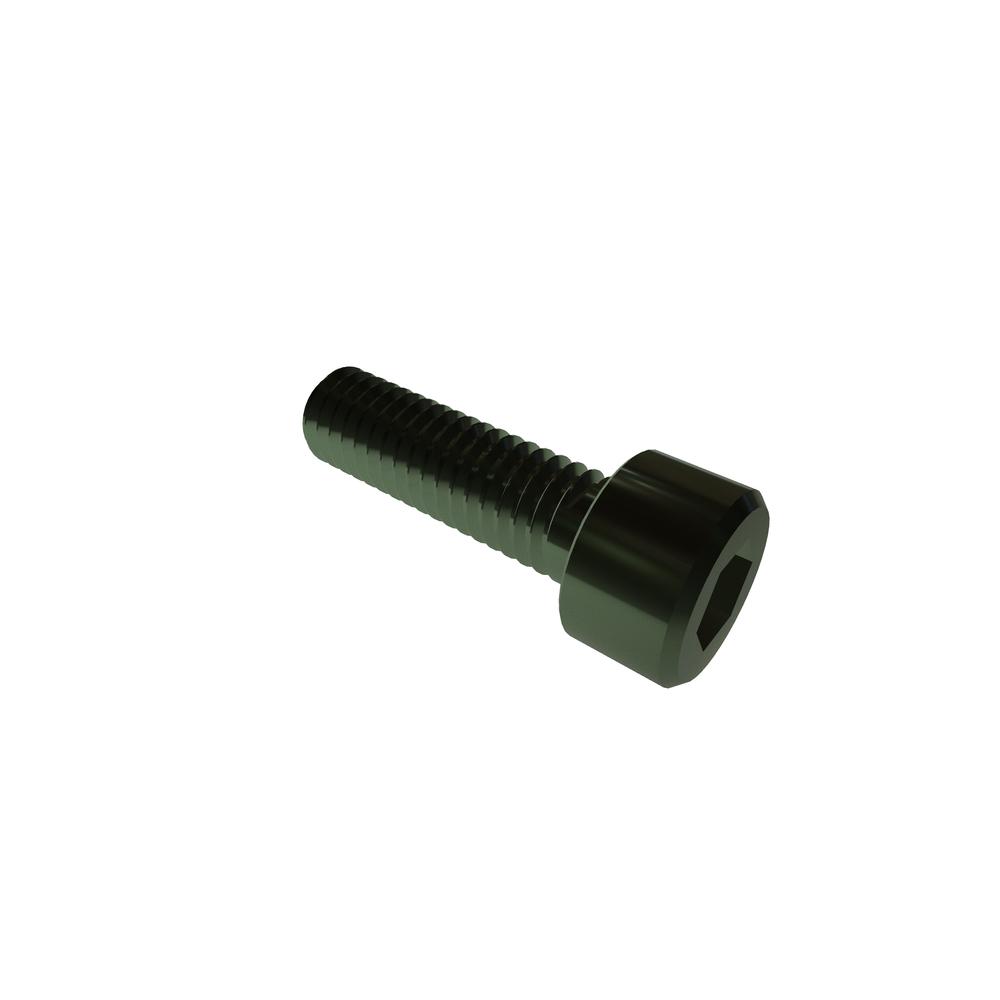

M6-1.00 X 20 SOC CAP 8.8 ZN CR3
Alternate Codes: 90327A138
RoHS/REACH compliant
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.364 | $0.191 | $0.151 | $0.140 | $0.117 | Larger Quantities |
In Stock
| Thread Size | M6x1 |
| Material | Steel |
| Finish | Zinc Cr3 Plated |
| Units | Metric |
| Thread Type | Metric Coarse |
| Head Type | Socket |
| Drive Type | Hex Socket |
| Grade | 8.8 |
| Brand | VARIED |
| Additional Industry Cross Reference | 90327A138 |
| Key Engagement (Min.) | 3.00 mm |
| Length | 20mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3.1M |
| Body Diameter (Max.) | 6.00 mm |
| Head Diameter (Max.) | 10.00 mm |
| Head Diameter (Min.) | 9.74 mm |
| Head Height (Max.) | 6.00 mm |
| Head Height (Min.) | 5.85 mm |
| Hex Socket Size | 5.00 mm |
