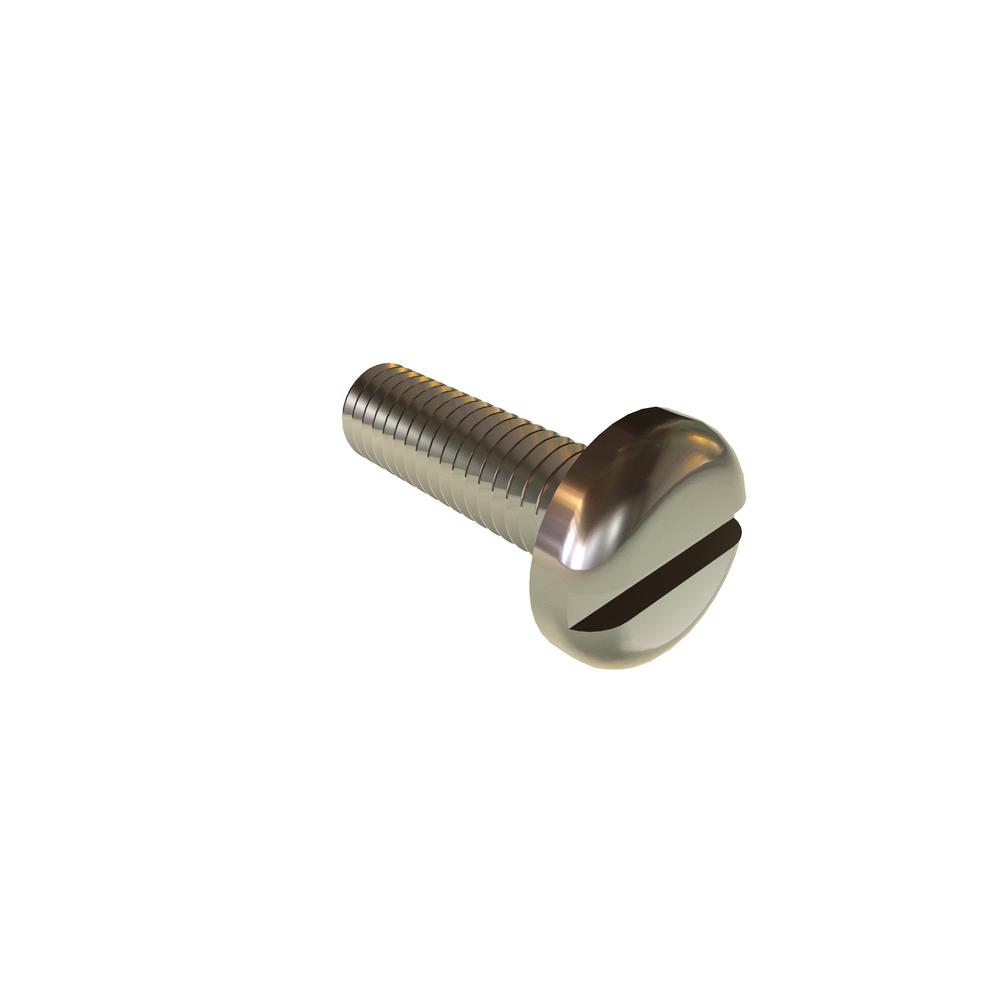

M6-1.0 X 20 SLOT PAN HD SST RoHS
.6C20SPMS
| Item Id | .6C20SPMS |
| Description | M6-1.0 X 20 SLOT PAN HD SST RoHS |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91200A178 |
| Body Diameter (Max.) | 6.00 mm |
| Body Diameter (Min.) | 5.21 mm |
| Brand | VARIED |
| Drive Type | Slotted |
| Finish | Plain |
| Head Diameter (Max.) | 12.00 mm |
| Head Diameter (Min.) | 11.50 mm |
| Head Height (Max.) | 3.60 mm |
| Head Height (Min.) | 3.30 mm |
| Head Radius (Min.) | 2.50 mm |
| Head Type | Pan |
| Length | 20mm |
| Material | Stainless Steel |
| Meets (Standard) | B18.6.7M |
| Nominal Diameter | 6.00 mm |
| RoHS | Compliant |
| Slot Depth (Min.) | 1.40 mm |
| Slot Width (Max.) | 1.90 mm |
| Slot Width (Min.) | 1.60 mm |
| Thread Size | M6x1 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
