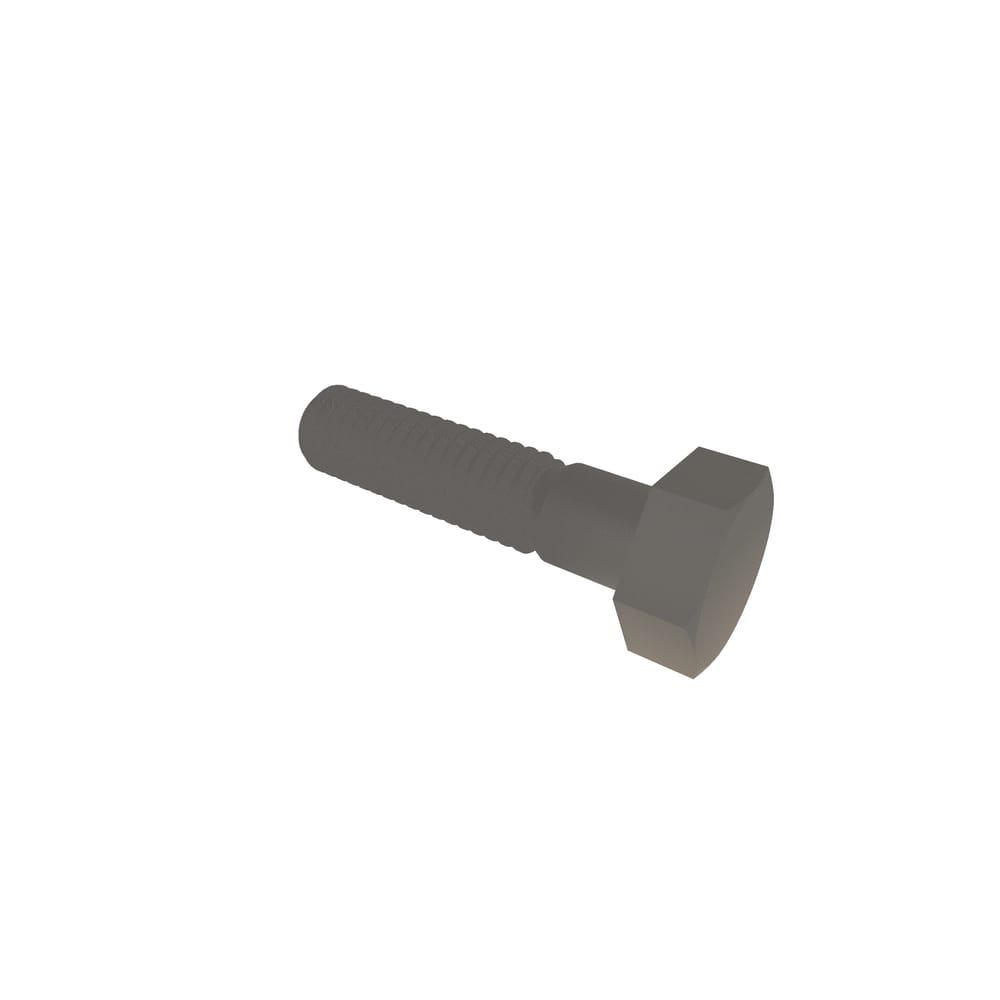

Image for reference purposes only. Actual product may vary.
.6C25HHDN
M6-1.0 X 25 HX HD NYL
Alternate Codes: N/A
M6-1.0 X 25 Hex Head Nylon RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Meets (Standard) | ASME B18.2.3.5M |
| Length | 25mm |
| Thread Size | M6x1 |
| Head Height (Min.) | 3.85 mm |
| Body Diameter (Max.) | 6.19 mm |
| Head Height (Max.) | 4.38 mm |
| Body Diameter (Min.) | 5.52 mm |
| Nominal Thread Size | 6.00 mm |
| Width Across Flat (Min.) | 9.64 mm |
| Thread Type | Metric Coarse |
| Material | Nylon |
| Width Across Flat (Max.) | 10.00 mm |
| Finish | Plain |
| Head Type | Hex |
| Grade | Other |
| Brand | VARIED |
| Units | Metric |
