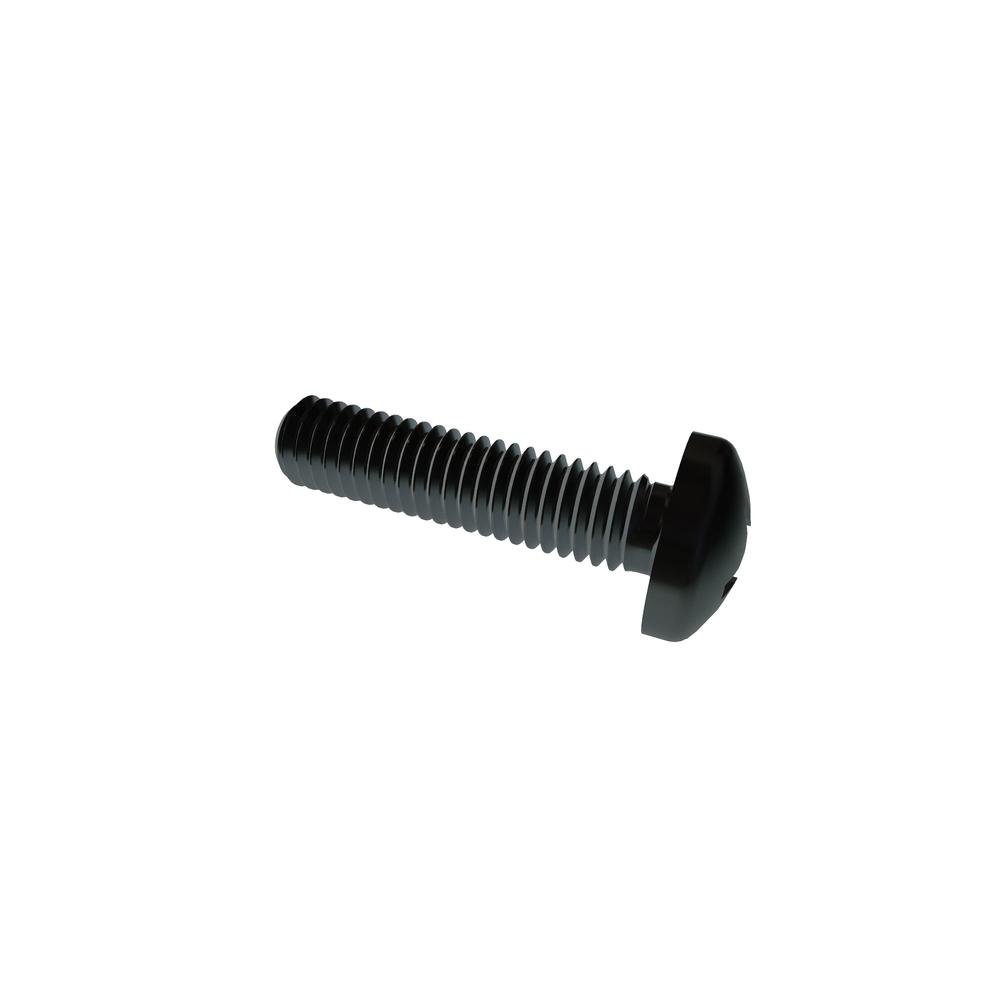

M6-1.0 X 25 PHIL PAN STL ZN RoHS
.6C25PPMZR
| Item Id | .6C25PPMZR |
| Description | M6-1.0 X 25 PHIL PAN STL ZN RoHS |
| Alternate Codes | 92005A430 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92005A430 92005A330 |
| Body Diameter (Max.) | 6.00 mm |
| Body Diameter (Min.) | 5.21 mm |
| Brand | VARIED |
| Drive Size | 3 |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 12.00 mm |
| Head Diameter (Min.) | 11.57 mm |
| Head Height (Max.) | 4.60 mm |
| Head Height (Min.) | 4.30 mm |
| Head Radius (Min.) | 10.00 mm |
| Head Type | Pan |
| Length | 25mm |
| Material | Steel |
| Meets (Standard) | B18.6.7M |
| Nominal Diameter | 6.00 mm |
| Recess Depth (Max.) | 3.60 mm |
| Recess Depth (Min.) | 3.10 mm |
| Recess Diameter | 6.92 mm |
| RoHS | Compliant |
| Thread Size | M6x1 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
