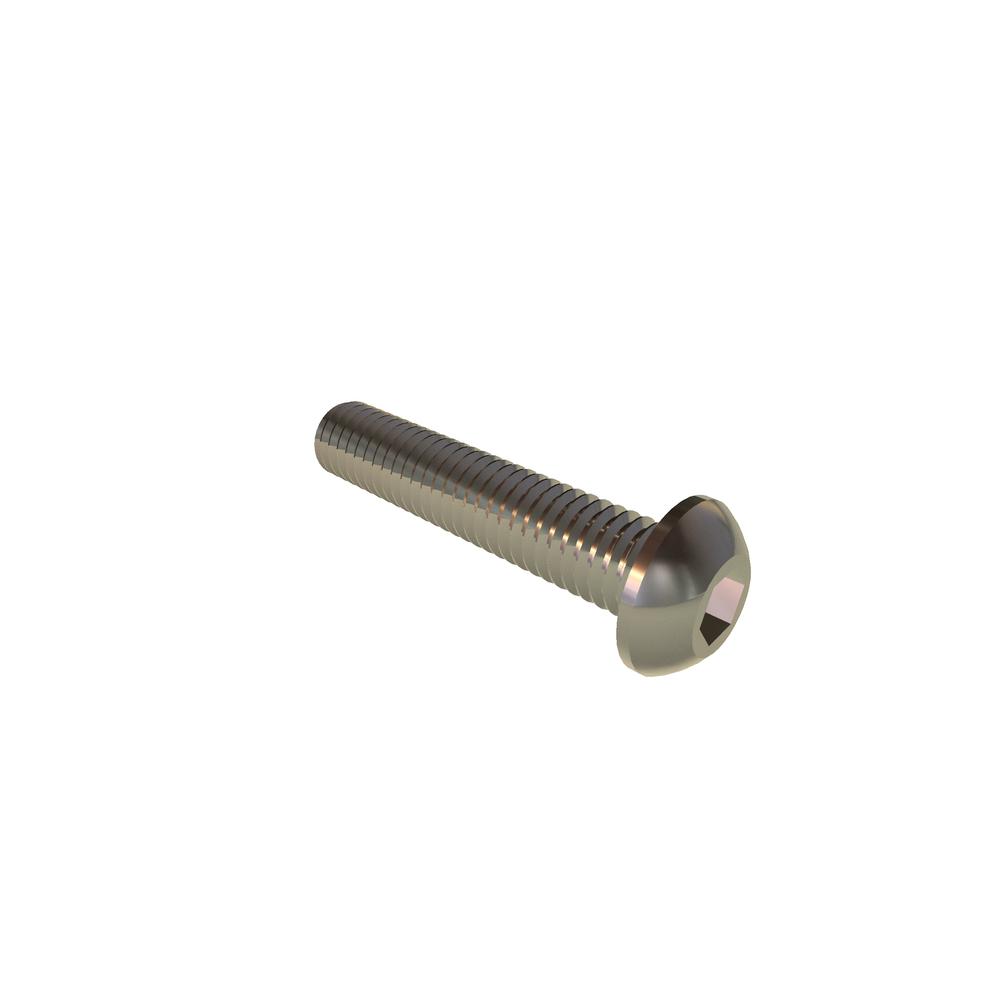

.6C30BHCS
M6-1.0 X 30 BUT SOC SST RoHS
Alternate Codes: 92095A244
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.762 | $0.419 | $0.349 | $0.299 | $0.247 | Larger Quantities |
In Stock
| Thread Size | M6x1 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 6 mm |
| Head Type | Button |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Min.) | 6.50 mm |
| Fillet Transition Diameter (Max.) | 6.80 mm |
| Head Side Height (Ref.) | 0.80 mm |
| Key Engagement | 2.08 mm |
| Brand | VARIED |
| Additional Industry Cross Reference | 92095A244 |
| Length | 30mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3.4M |
| Head Diameter (Max.) | 10.50 mm |
| Head Diameter (Min.) | 10.07 mm |
| Head Height (Max.) | 3.30 mm |
| Head Height (Min.) | 3.00 mm |
| Hex Socket Size | 4.00 mm |
