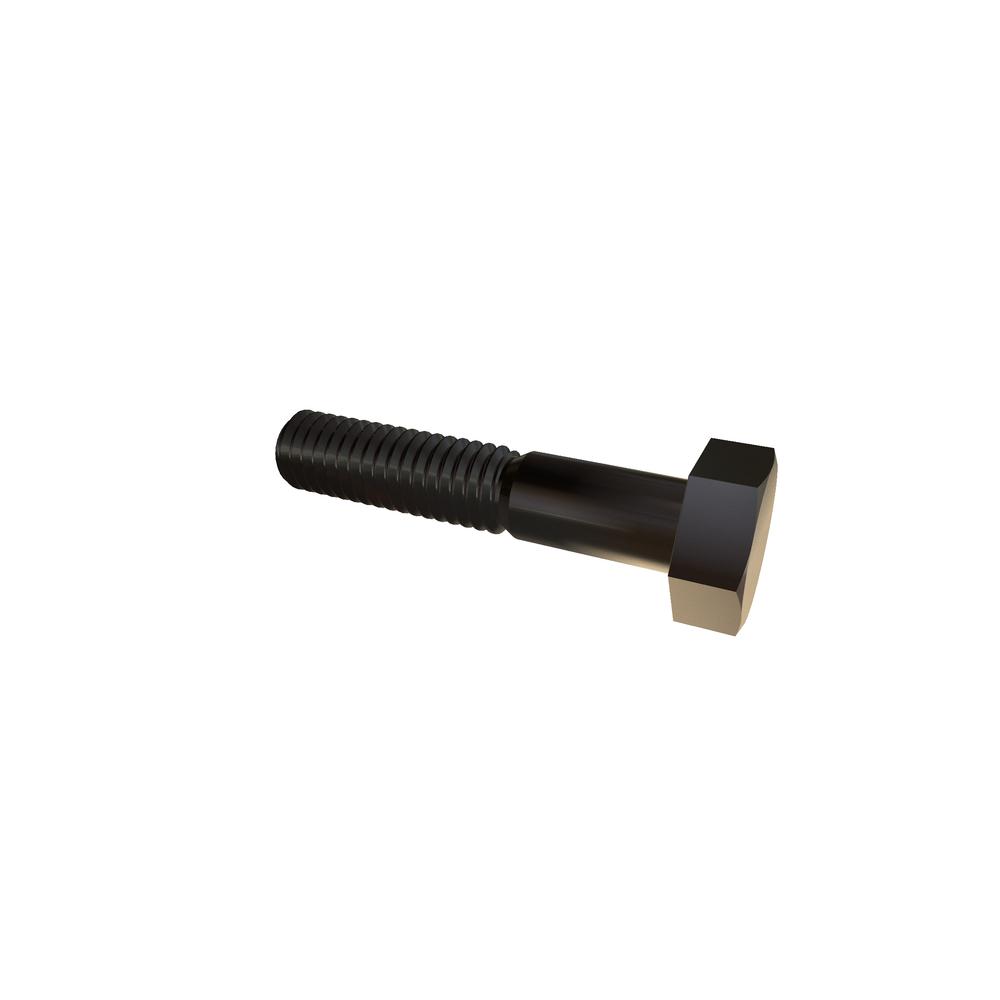

.6C30HHD3
M6-1.0 X 30 HX HD 316SS RoHS
Alternate Codes: N/A
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M6x1 |
| Material | 316 Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Head Type | Hex |
| Body Diameter (Min.) | 5.52 mm |
| Nominal Thread Size | 6.00 mm |
| Grade | Other |
| Brand | VARIED |
| Additional Industry Cross Reference | 93635A218 |
| Length | 30mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.2.3.5M |
| Body Diameter (Max.) | 6.19 mm |
| Head Height (Max.) | 4.38 mm |
| Head Height (Min.) | 3.85 mm |
| Width Across Flat (Max.) | 10.00 mm |
| Width Across Flat (Min.) | 9.64 mm |
