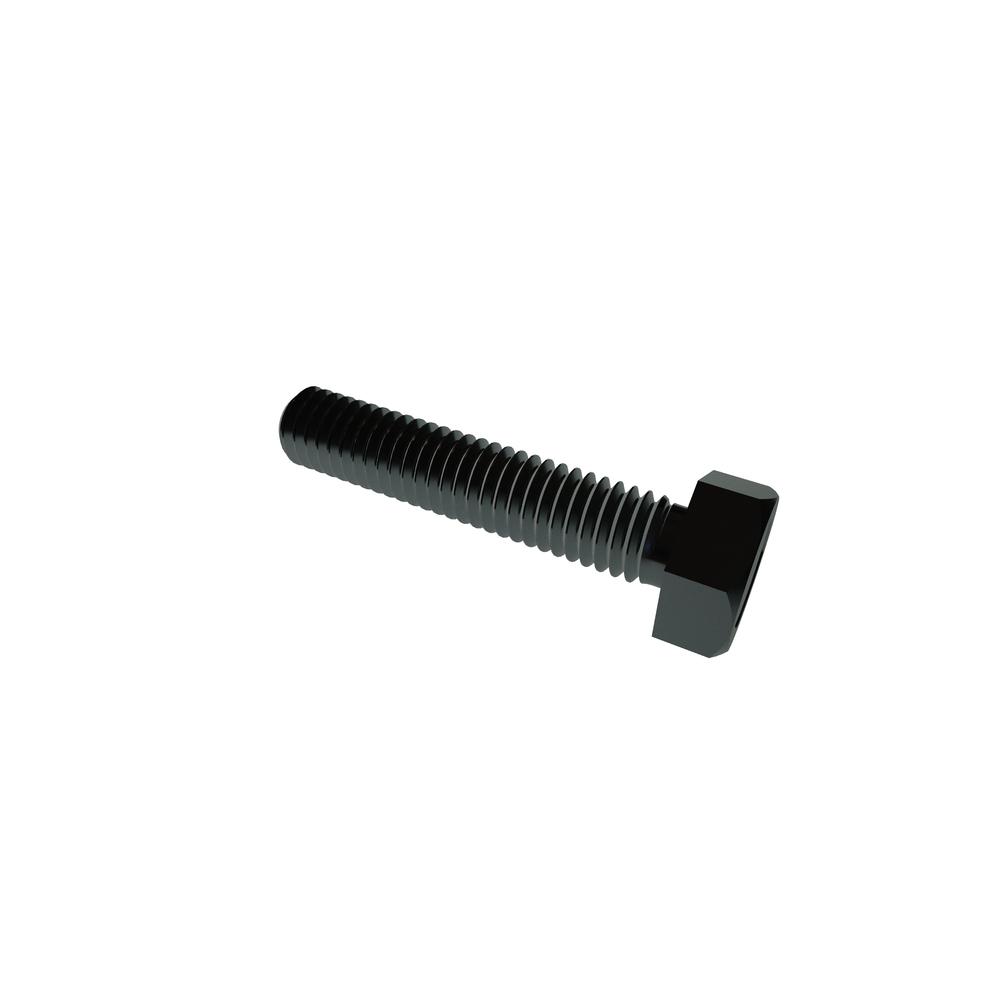

M6-1.0 X 30 HX HD 8.8 ZN RoHS
.6C30HHDWR
| Item Id | .6C30HHDWR |
| Description | M6-1.0 X 30 HX HD 8.8 ZN RoHS |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91280A338 |
| Body Diameter (Max.) | 6.00 mm |
| Body Diameter (Min.) | 5.21 mm |
| Brand | VARIED |
| Finish | Zinc Cr3 |
| Grade | 8.8 |
| Head Height (Max.) | 4.70 mm |
| Head Height (Min.) | 4.10 mm |
| Head Type | Hex |
| Material | Steel |
| Nominal Diameter | 6.00 mm |
| RoHS | Compliant |
| Thread Size | M6x1 |
| Thread Type | Metric Coarse |
| Total Length | 30mm |
| Units | Metric |
| Width Across Flat (Max.) | 10.00 mm |
| Width Across Flat (Min.) | 9.78 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
