.6C30PPMZR

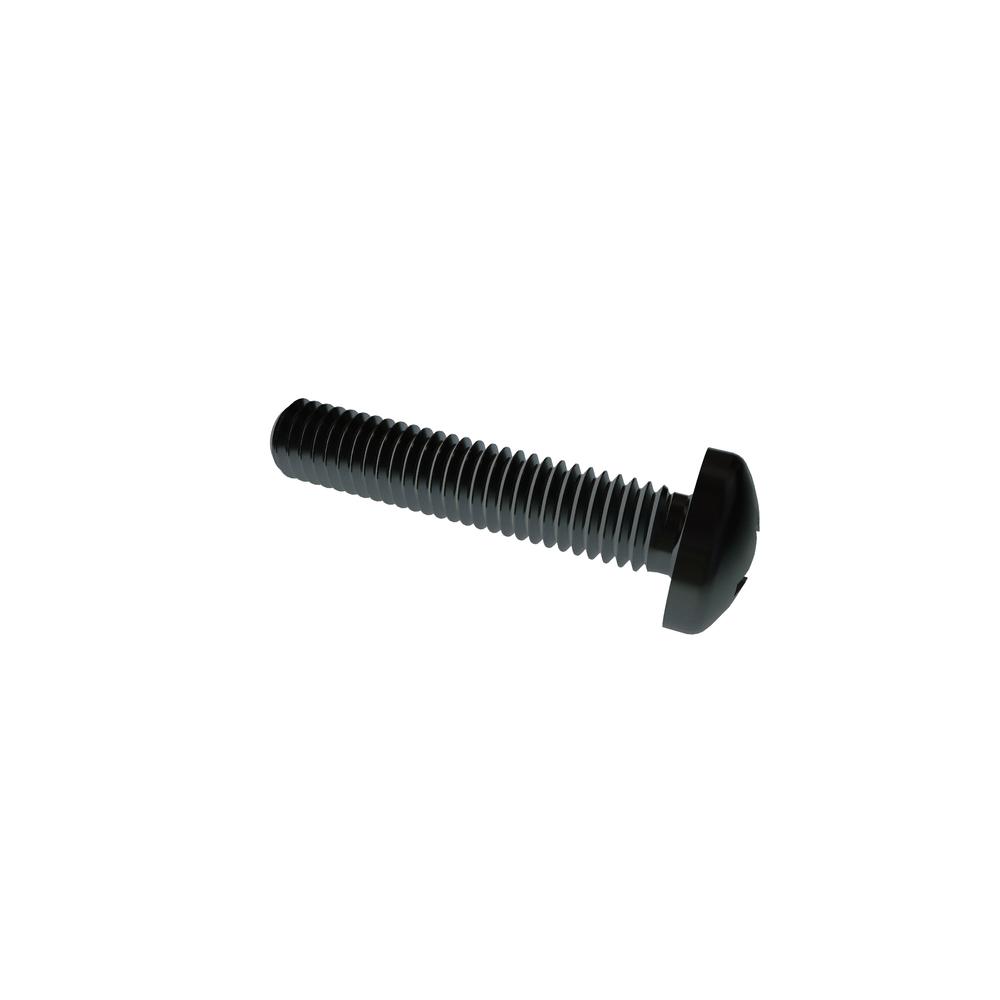

M6-1.0 X 30 PH PAN STL ZN CR3
Alternate Codes: N/A
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M6x1 |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 6.00 mm |
| Head Type | Pan |
| Drive Type | Phillips |
| Drive Size | 3 |
| Recess Diameter | 6.92 mm |
| Head Radius (Min.) | 10.00 mm |
| Body Diameter (Min.) | 5.21 mm |
| Recess Depth (Min.) | 3.10 mm |
| Recess Depth (Max.) | 3.60 mm |
| Brand | VARIED |
| RoHS | Compliant |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 6.00 mm |
| Head Diameter (Max.) | 12.00 mm |
| Head Diameter (Min.) | 11.57 mm |
| Head Height (Max.) | 4.60 mm |
| Head Height (Min.) | 4.30 mm |
