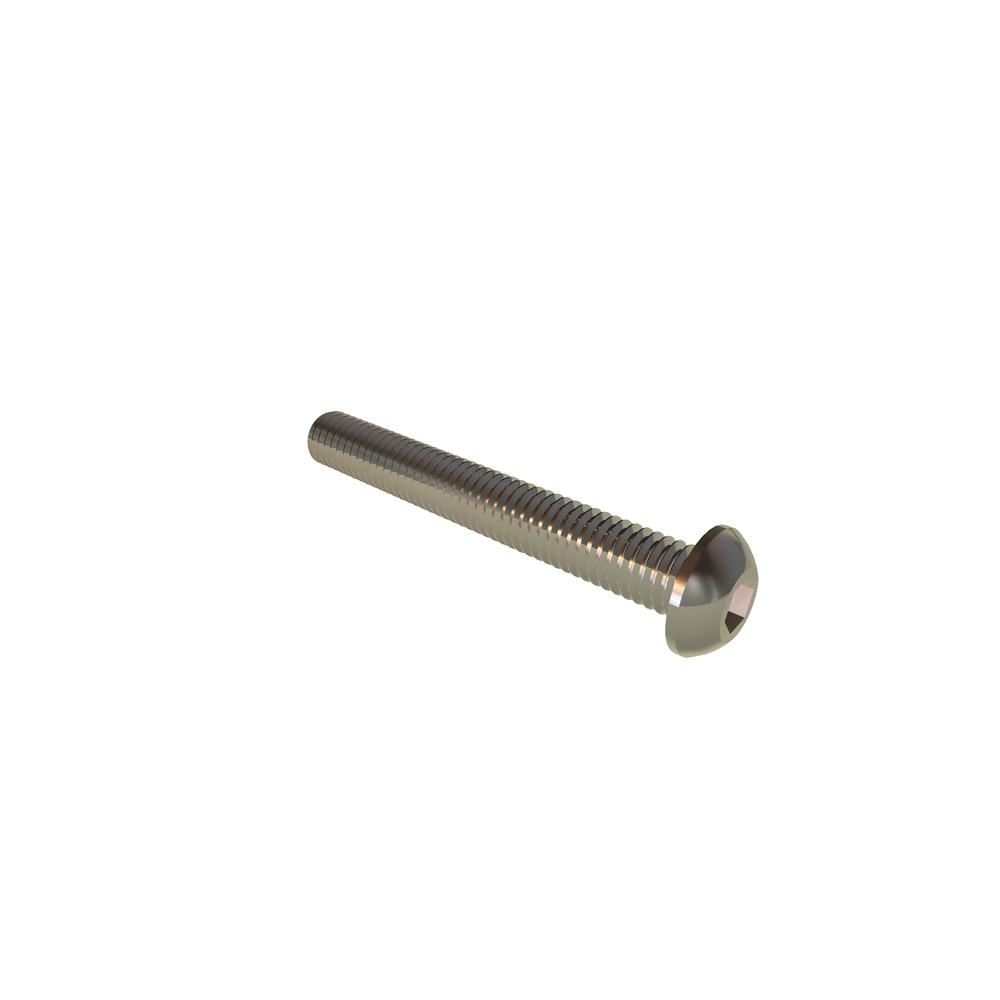

M6-1.0 X 45 BUT SOC SST RoHS
.6C45BHCS
| Item Id | .6C45BHCS |
| Description | M6-1.0 X 45 BUT SOC SST RoHS |
| Alternate Codes | 92095A250 |
| Extended Description | M6-1.0 X 45 Button head Socket Stainless Steel RoHS3 |
| Packaging | EA |
| Additional Industry Cross Reference | 92095A250 |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Max.) | 6.80 mm |
| Fillet Transition Diameter (Min.) | 6.50 mm |
| Finish | Plain |
| Head Diameter (Max.) | 10.50 mm |
| Head Diameter (Min.) | 10.07 mm |
| Head Height (Max.) | 3.30 mm |
| Head Height (Min.) | 3.00 mm |
| Head Side Height (Ref.) | 0.80 mm |
| Head Type | Button |
| Hex Socket Size | 4.00 mm |
| Key Engagement | 2.08 mm |
| Length | 45mm |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.3.4M |
| Nominal Diameter | 6 mm |
| RoHS | Compliant |
| Thread Size | M6x1 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
