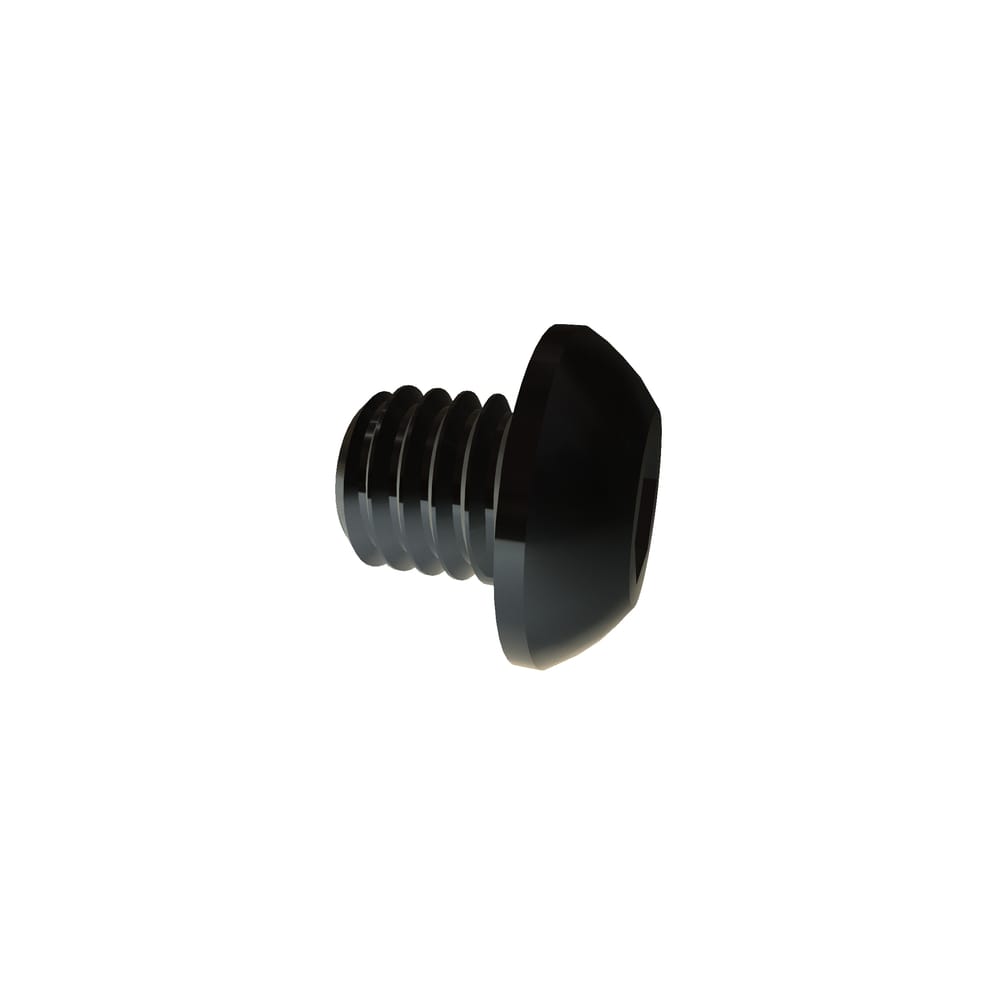

.6C6BHCA
M6-1.0 X 6 BUT SOC ALLOY
Alternate Codes: N/A
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M6x1 |
| Material | Alloy Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 6 mm |
| Head Type | Button |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Min.) | 6.50 mm |
| Fillet Transition Diameter (Max.) | 6.80 mm |
| Head Side Height (Ref.) | 0.80 mm |
| Key Engagement | 2.08 mm |
| Brand | VARIED |
| Additional Industry Cross Reference | 91239A313 |
| Length | 6mm |
| Meets (Standard) | ASME B18.3.4M |
| Head Diameter (Max.) | 10.50 mm |
| Head Diameter (Min.) | 10.07 mm |
| Head Height (Max.) | 3.30 mm |
| Head Height (Min.) | 3.00 mm |
| Hex Socket Size | 4.00 mm |
