.6CFLNS/W

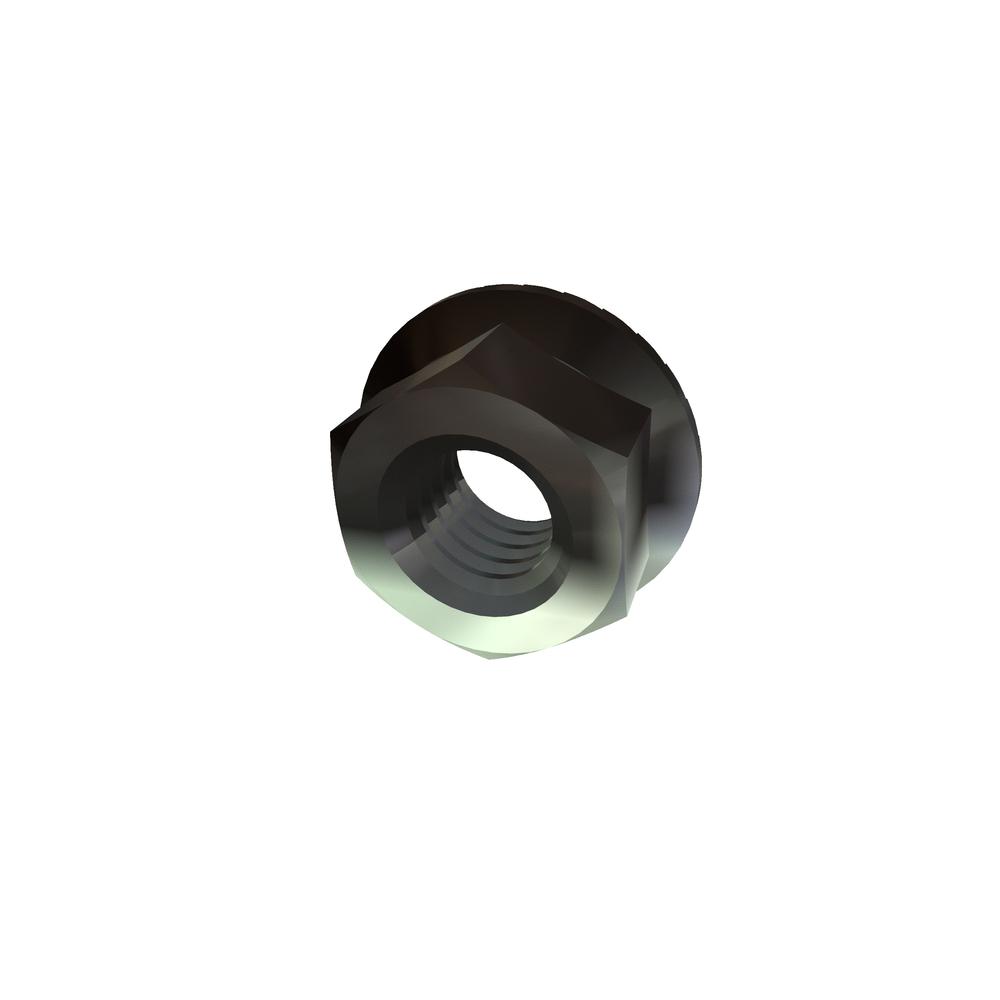

M6-1.0 FLANGE NUT WHIZLOK SST RoHS
Alternate Codes: 97400A101, DIN6923
DIN6923-A2 M6
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.397 | $0.209 | $0.165 | $0.153 | $0.128 | Larger Quantities |
In Stock
| Thread Size | M6x1 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 6.00 mm |
| Flange Diameter (Min.) | 12.20 mm |
| Flange Diameter (Max.) | 14.20 mm |
| Flange Thickness (Min.) | 1.10 mm |
| Wrenching Height (Min.) | 3.10 mm |
| Brand | VARIED |
| Type | Flange Nut Whizlok |
| Additional Industry Cross Reference | 97400A101 |
| RoHS | Compliant |
| Meets (Standard) | ISO 4161 |
| Head Thickness (Max.) | 6.00 mm |
| Head Thickness (Min.) | 5.70 mm |
| Width Across Flat (Max.) | 10.00 mm |
| Width Across Flat (Min.) | 9.78 mm |
