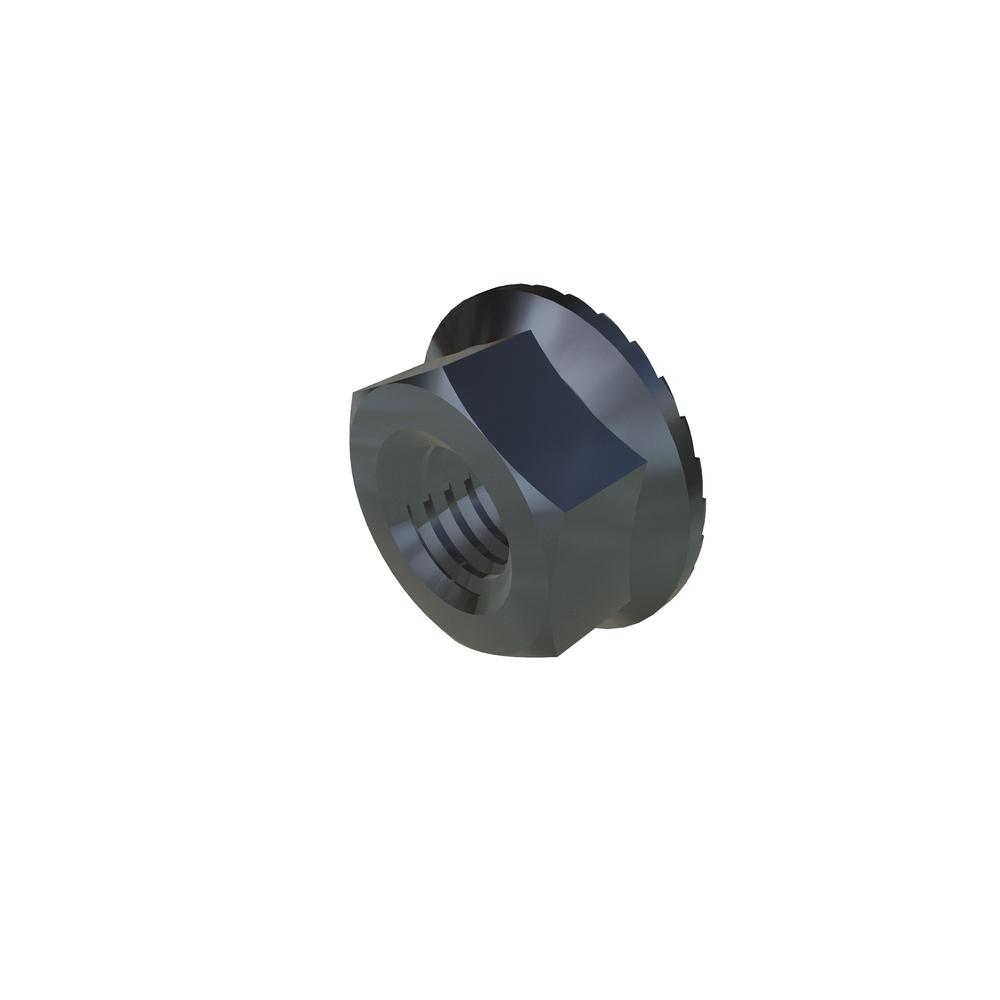

Image for reference purposes only. Actual product may vary.
.6CFLNZR/W
M6-1.0 HX FLNG NUT STL ZNC WHIZ
Alternate Codes: 96194A101 MCMASTER
M6-1.0 Hex Flange Nut Serrated Steel Zinc Plated RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.629 | $0.346 | $0.288 | $0.247 | $0.204 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | M6x1 |
| Type | Hex Flange Nut Whiz |
| Material | Steel |
| Finish | Zinc Clear |
| Wrenching Height (Min.) | 3.10 mm |
| Width Across Flat (Max.) | 10.00 mm |
| Width Across Flat (Min.) | 9.78 mm |
| Nominal Diameter | 6.00 mm |
| Flange Diameter (Min.) | 12.20 mm |
| Flange Diameter (Max.) | 14.20 mm |
| Flange Thickness (Min.) | 1.10 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Brand | VARIED |
| Additional Industry Cross Reference | 96194A101 |
| Meets (Standard) | ISO 4161 |
| Head Thickness (Max.) | 6.00 mm |
| Head Thickness (Min.) | 5.70 mm |
