.6N10ZEUZN

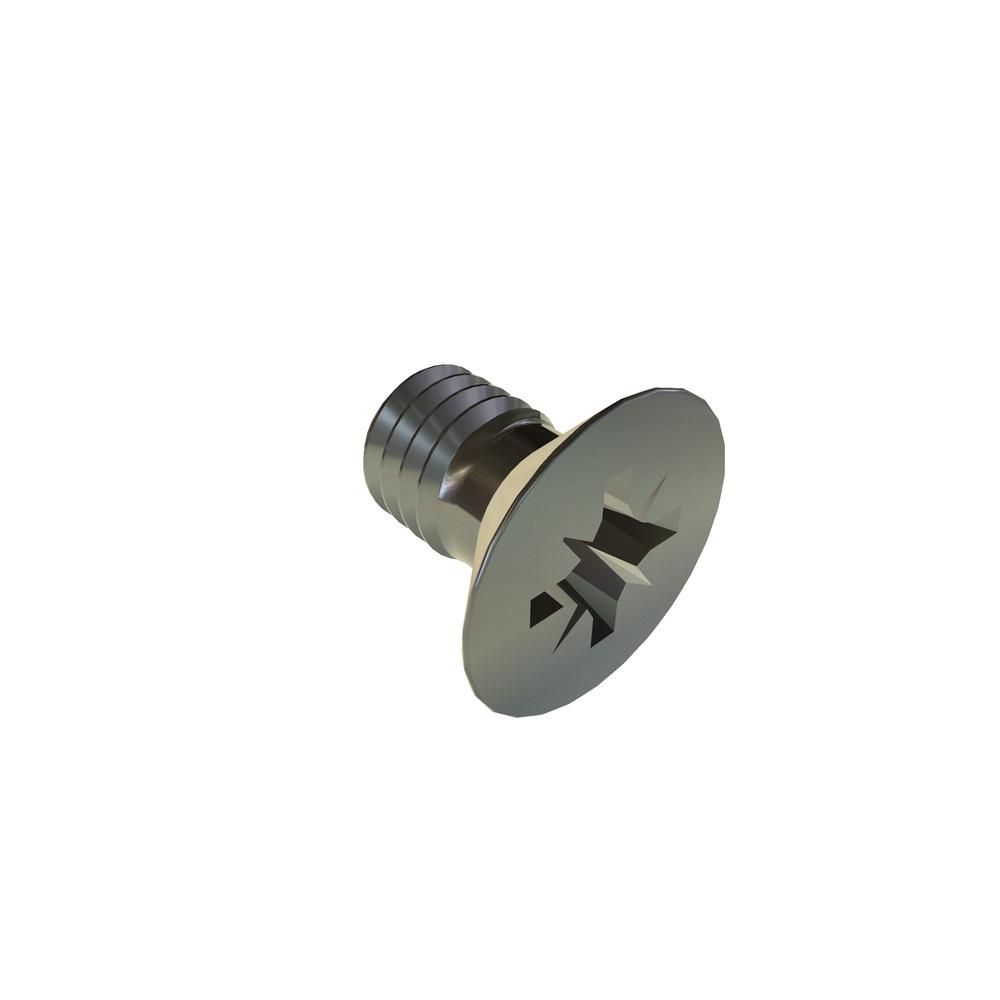

M6 X 10 POZI FLAT EURO SCR STL NI
Alternate Codes: FAN SCREW
RoHS
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs |
|---|---|---|---|---|
| $0.162 | $0.097 | $0.081 | $0.066 | $0.059 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M6x1 |
| Material | Steel |
| Finish | Nickel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 6.00 mm |
| Head Type | Flat |
| Drive Type | Pozi |
| Drive Size | 3 |
| Recess Diameter | 6.66 mm |
| Head Height | 3.30 mm |
| Recess Depth (Min.) | 3 mm |
| Recess Depth (Max.) | 3.45 mm |
| Recess Width | 1.12 mm |
| Brand | VARIED |
| Length | 10mm |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 11.30 mm |
| Head Diameter (Min.) | 10.87 mm |
