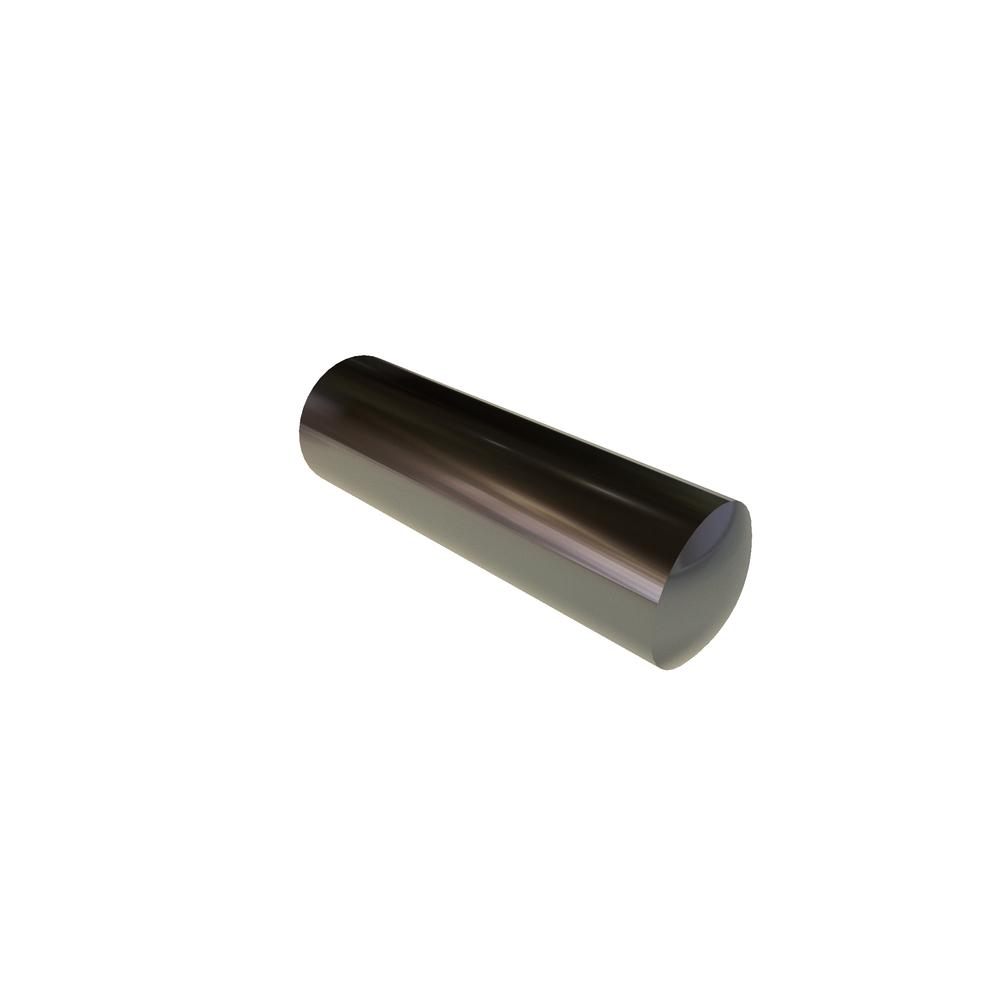

Image for reference purposes only. Actual product may vary.
.6R10DOWS/M6
M6 X 10 DOWEL PIN m6 tol SST RoHS
Alternate Codes: 91585A618
"length of pin does not include the crowns, only the length that conforms to the diameter"
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 6mm |
| Length | 10mm |
| Tolerance | m6 |
| Type | Press Fit |
| Brand | VARIED |
| Material | 300 Stainless Steel |
| Units | Metric |
| Corner radius | 0.40 mm |
| Pin Diameter (Min.) | 6.004mm |
| Pin Diameter (Max.) | 6.012mm |
| Point Diameter | 5.8 mm |
| Additional Industry Cross Reference | DIN7 91585A618 |
| RoHS | Compliant |
| Heat Treat | Unhardened |
