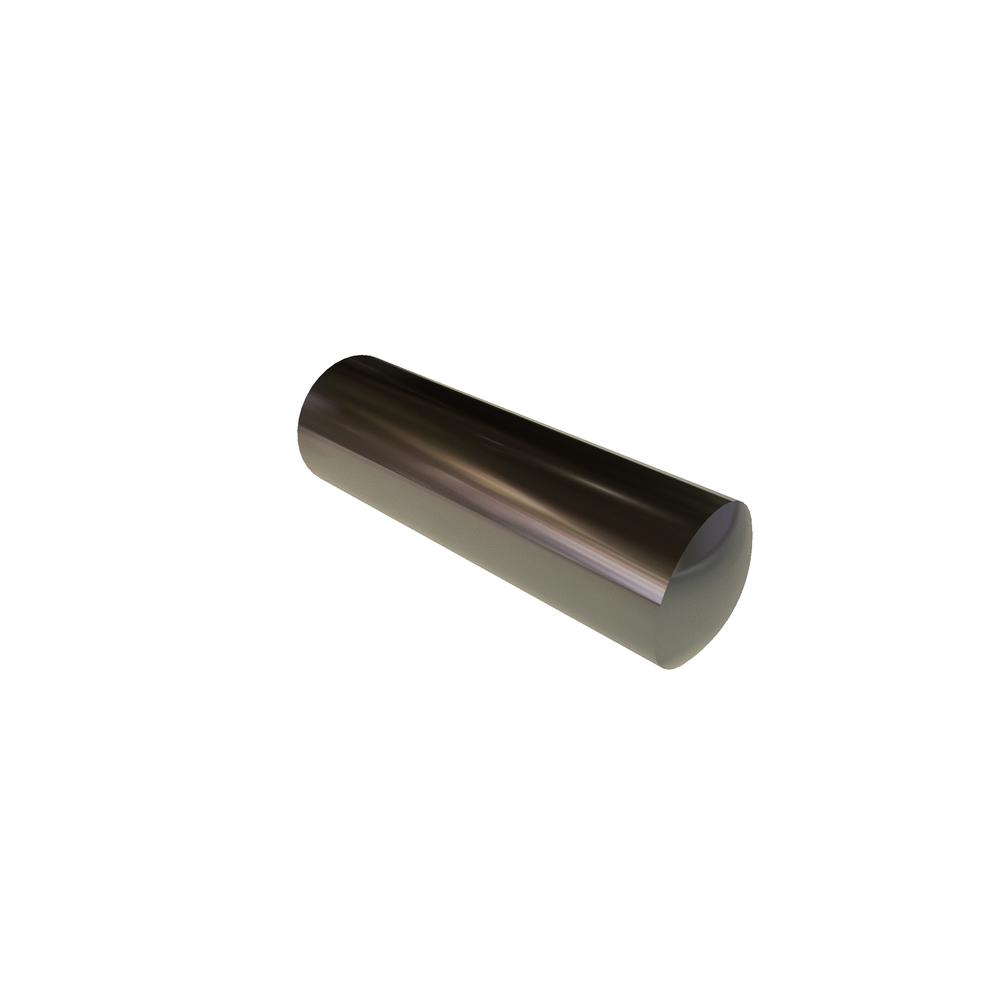

M6 X 12 DOWEL PIN SST RoHS
.6R12DOWS
| Item Id | .6R12DOWS |
| Description | M6 X 12 DOWEL PIN ISO2338-h8 SST RoHS |
| Alternate Codes | 901548 |
| Extended Description | flat ends; measurement is overall length of pin |
| Packaging | EA |
| Additional Industry Cross Reference | ISO2338 |
| Brand | VARIED |
| Corner radius | 0.40 mm |
| Heat Treat | Unhardened |
| Length | 12mm |
| Material | 300 Stainless Steel |
| Nominal Diameter | 6mm |
| Pin Diameter (Max.) | 6.000mm |
| Pin Diameter (Min.) | 5.978mm |
| Point Diameter | 5.8 mm |
| RoHS | Compliant |
| Tolerance | h8 |
| Type | Slip Fit |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
