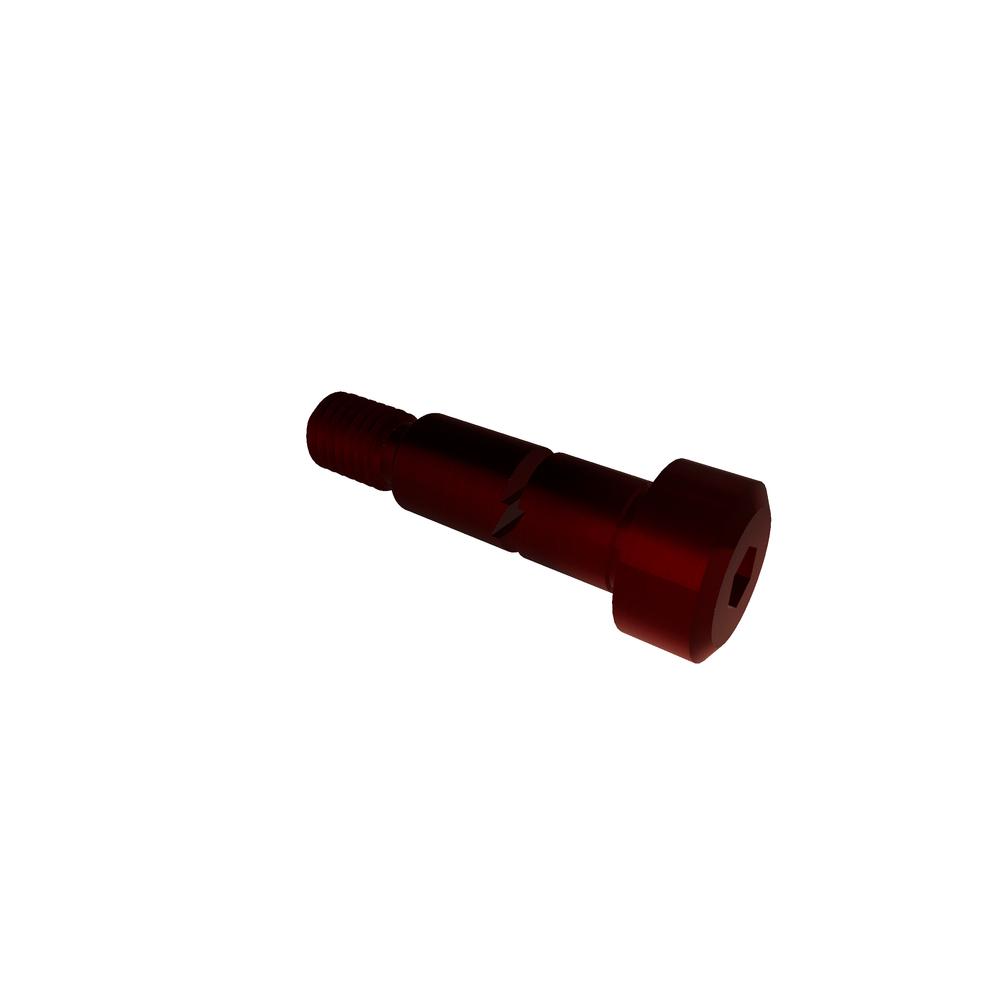

M6 X 12 SHLDR BOLT ALLOY RoHS
.6R12SHBA
| Item Id | .6R12SHBA |
| Description | M6 X 12 SHLDR BOLT ALLOY RoHS |
| Alternate Codes | 92981A101 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92981A101 |
| Brand | VARIED |
| Finish | Plain |
| Head Diameter (Max.) | 10.22 mm |
| Head Diameter (Min.) | 9.78 mm |
| Head Height (Max.) | 4.50 mm |
| Head Height (Min.) | 4.32 mm |
| Head Side Height (Min.) | 0.60 mm |
| Key Engagement | 2.40 mm |
| Length | 12mm |
| Material | Alloy |
| Meets (Standard) | shoulder_bolt_metric.pdf |
| Nominal Diameter | 5.00 mm |
| Nominal Shoulder Diameter | 6.00 mm |
| Shoulder Diameter | M6 |
| Shoulder Diameter (Max.) | 5.99 mm |
| Shoulder Diameter (Min.) | 5.95 mm |
| Thread Length | 9.750 mm |
| Thread Size | M5x0.8 |
| Thread Type | Metric Coarse |
| Type | Shoulder Bolt |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
