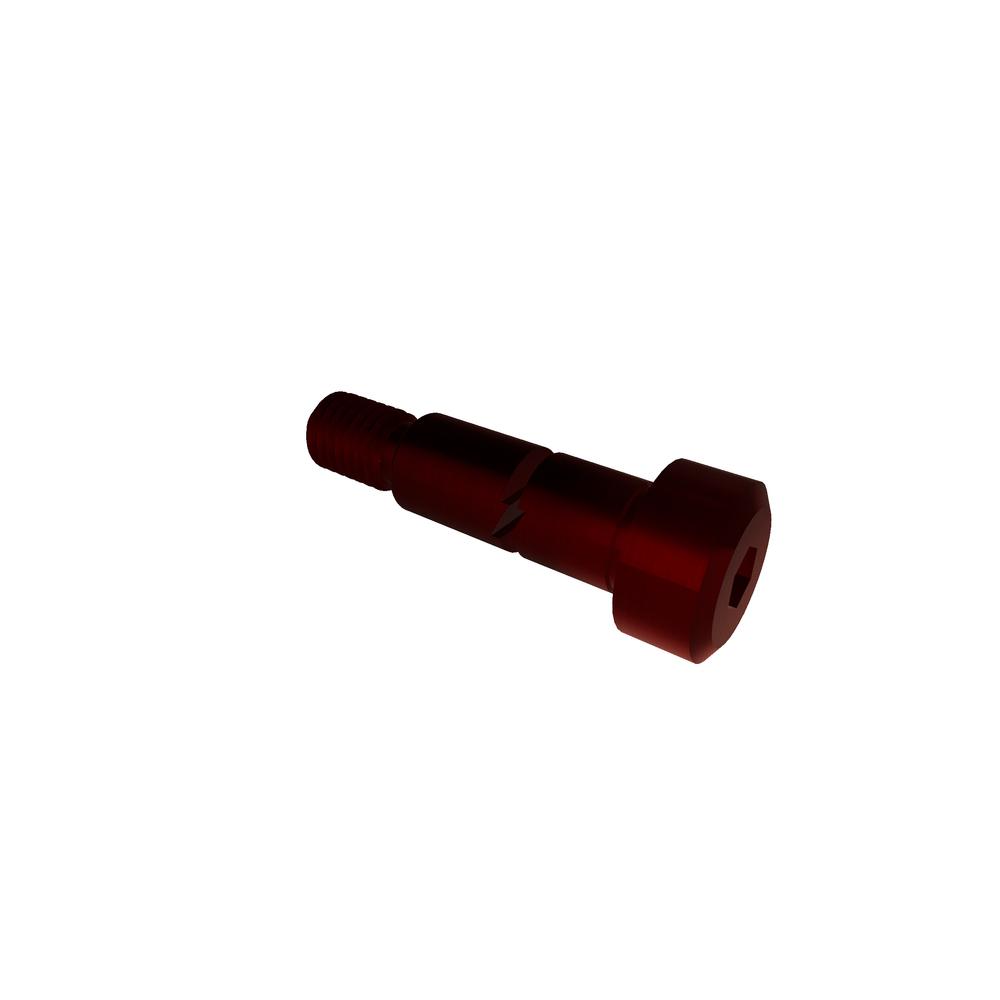

Image for reference purposes only. Actual product may vary.
.6R15SHBA
M6 X 15 SHLDR BOLT ALLOY
Alternate Codes: 92981A751
M6 X 15 (M5-.8) Shoulder Bolt ISO 7379 Alloy RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 5.00 mm |
| Length | 15mm |
| Thread Size | M5x0.8 |
| Finish | Plain |
| Nominal Shoulder Diameter | 6.00 mm |
| Material | Alloy |
| Thread Length | 9.750 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Key Engagement | 2.40 mm |
| Head Side Height (Min.) | 0.60 mm |
| Shoulder Diameter | M6 |
| Shoulder Diameter (Min.) | 5.95 mm |
| Shoulder Diameter (Max.) | 5.99 mm |
| Brand | VARIED |
| Type | Shoulder Bolt |
| Additional Industry Cross Reference | 92981A751 |
| Meets (Standard) | shoulder_bolt_metric.pdf |
| Head Diameter (Max.) | 10.22 mm |
| Head Diameter (Min.) | 9.78 mm |
| Head Height (Max.) | 4.50 mm |
| Head Height (Min.) | 4.32 mm |
