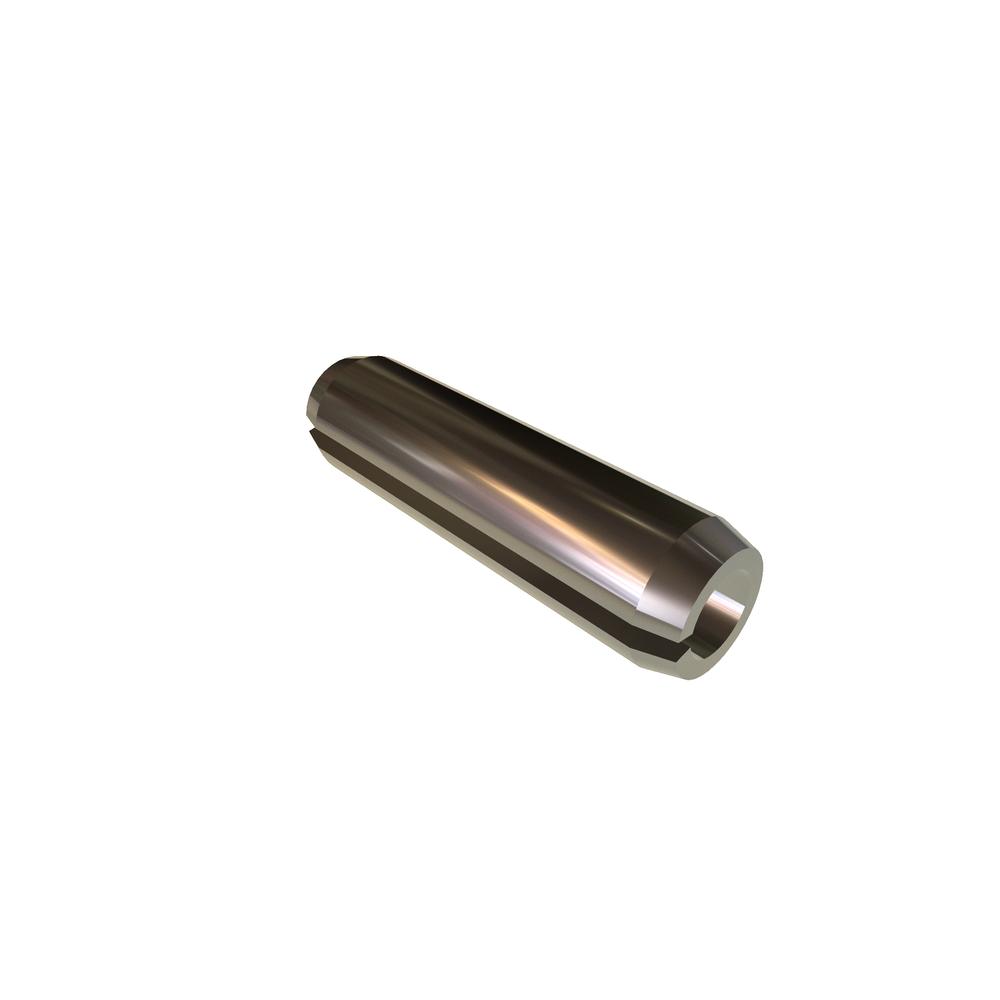

M6 X 24 ROLL PIN SST RoHS
.6R24ROLS
| Item Id | .6R24ROLS |
| Description | M6 X 24 ROLL PIN SST RoHS |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Chamfer Diameter | 5.8 mm |
| Chamfer Length (Max.) | 1.6 mm |
| Chamfer Length (Min.) | 0.4 mm |
| Finish | Plain |
| Material | 300 Stainless Steel |
| Nominal Diameter | 6 mm |
| Pin Diameter (Max.) | 6.36 mm |
| Pin Diameter (Min.) | 6.18 mm |
| Recommended Hole Size (Max.) | 6.12 mm |
| Recommended Hole Size (Min.) | 6 mm |
| RoHS | Compliant |
| Units | Metric |
| Wall Thickness | 1.2 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
