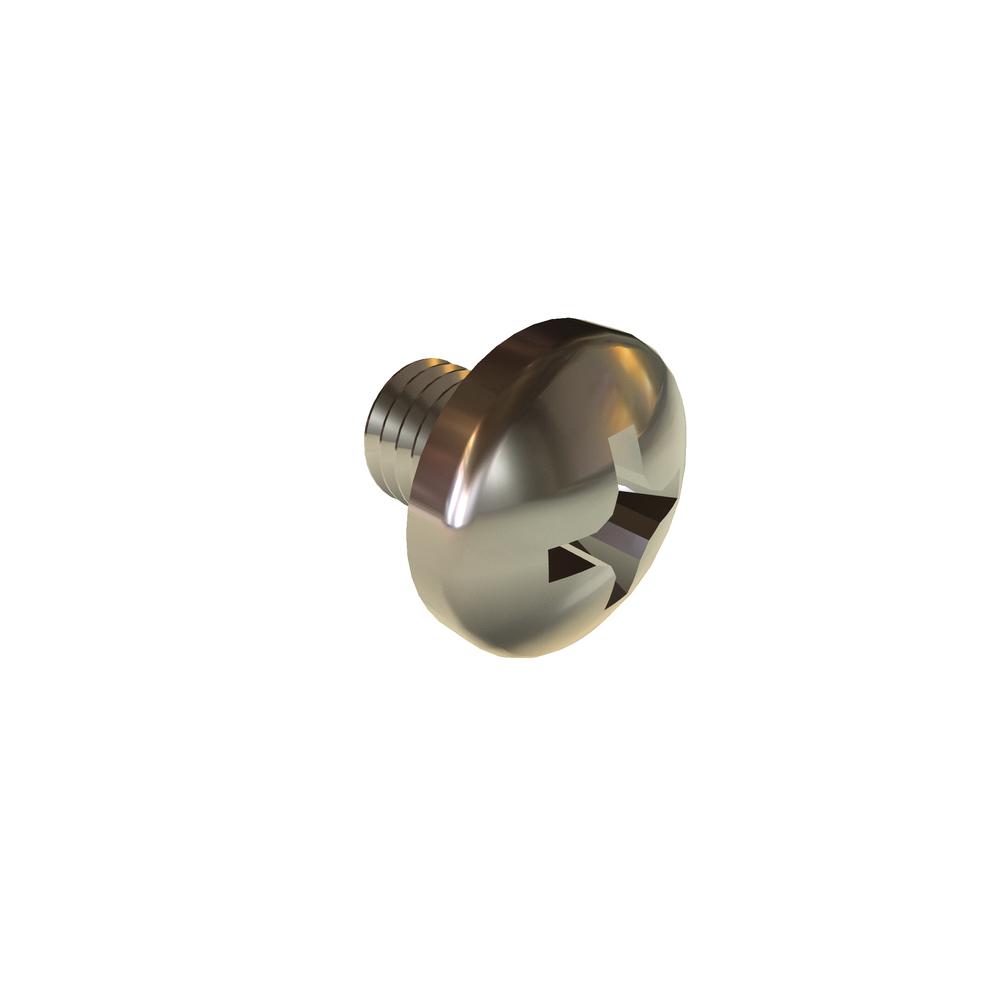

M8-1.25 X 10 PHIL PAN DIN7985 SST RoHS
.8C10PPMS
| Item Id | .8C10PPMS |
| Description | M8-1.25 X 10 PHIL PAN DIN7985 SST RoHS |
| Alternate Codes | 92000A095 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92000A095 92000A095 |
| Body Diameter (Max.) | 8.00 mm |
| Body Diameter (Min.) | 7.04 mm |
| Brand | VARIED |
| Drive Size | 4 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 16.00 mm |
| Head Diameter (Min.) | 15.57 mm |
| Head Height (Max.) | 6.00 mm |
| Head Height (Min.) | 5.70 mm |
| Head Radius (Min.) | 13.00 mm |
| Head Type | Pan |
| Length | 10mm |
| Material | Stainless Steel |
| Meets (Standard) | B18.6.7M |
| Nominal Diameter | 8.00 mm |
| Recess Depth (Max.) | 4.60 mm |
| Recess Depth (Min.) | 4.00 mm |
| Recess Diameter | 9.02 mm |
| RoHS | Compliant |
| Thread Size | M8x1.25 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
