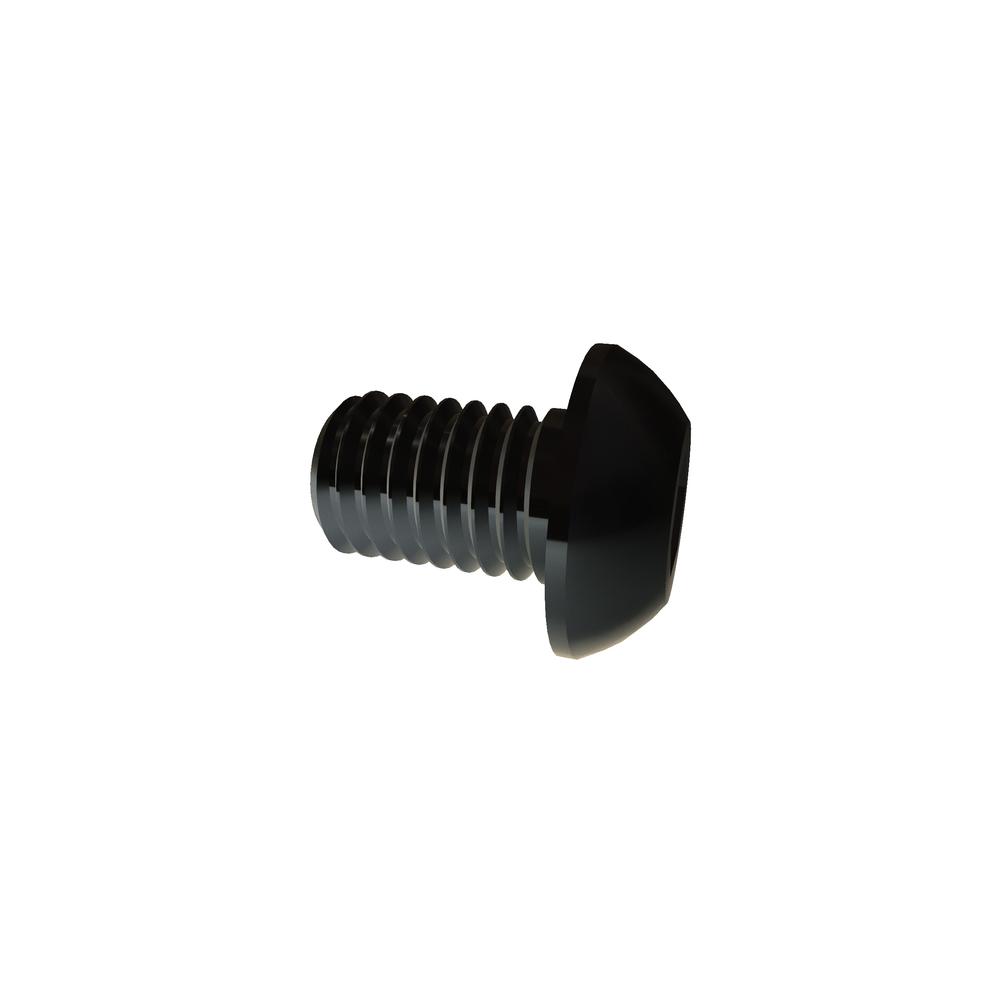

M8-1.25 X 12 BUT SOC ALLOY
.8C12BHCA
| Item Id | .8C12BHCA |
| Description | M8-1.25 X 12 BUT SOC ALLOY RoHS |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91239A416 |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Max.) | 9.20 mm |
| Fillet Transition Diameter (Min.) | 8.80 mm |
| Finish | Plain |
| Head Diameter (Max.) | 14.00 mm |
| Head Diameter (Min.) | 13.57 mm |
| Head Height (Max.) | 4.40 mm |
| Head Height (Min.) | 4.05 mm |
| Head Side Height (Ref.) | 0.80 mm |
| Head Type | Button |
| Hex Socket Size | 5.00 mm |
| Key Engagement | 2.60 mm |
| Length | 12mm |
| Material | Alloy Steel |
| Meets (Standard) | ASME B18.3.4M |
| Nominal Diameter | 8 mm |
| RoHS | Compliant |
| Thread Size | M8x1.25 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
