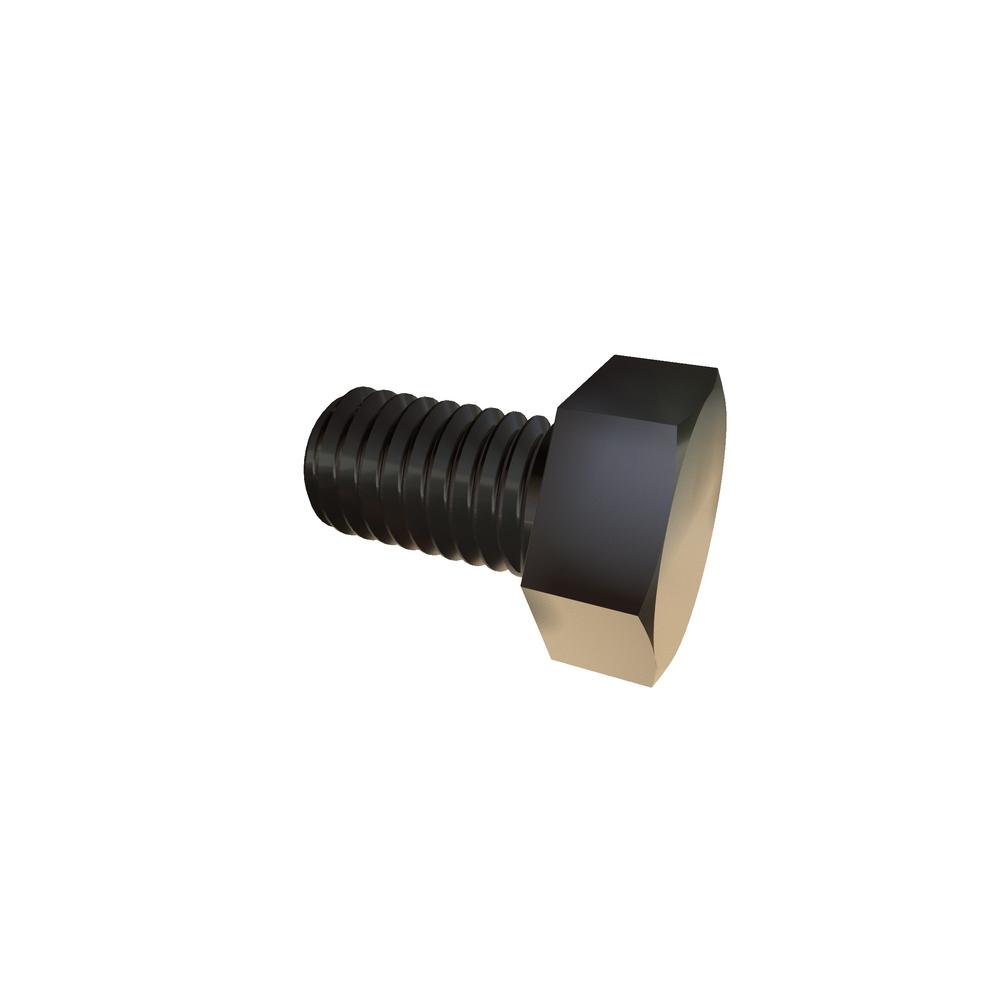

Image for reference purposes only. Actual product may vary.
.8C14HHD3
M8-1.25 X 14 HX HD 316 SST RoHS
Alternate Codes: N/A
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Meets (Standard) | ASME B18.2.3.5M |
| Length | 14mm |
| Thread Size | M8x1.25 |
| Head Height (Min.) | 5.10 mm |
| Body Diameter (Max.) | 8.58 mm |
| Head Height (Max.) | 5.68 mm |
| Additional Industry Cross Reference | 93635A459 |
| Body Diameter (Min.) | 7.42 mm |
| Nominal Thread Size | 8.00 mm |
| Width Across Flat (Min.) | 12.57 mm |
| Thread Type | Metric Coarse |
| Material | 316 Stainless Steel |
| Width Across Flat (Max.) | 13.00 mm |
| RoHS | Compliant |
| Finish | Plain |
| Head Type | Hex |
| Grade | Other |
| Brand | VARIED |
| Units | Metric |
