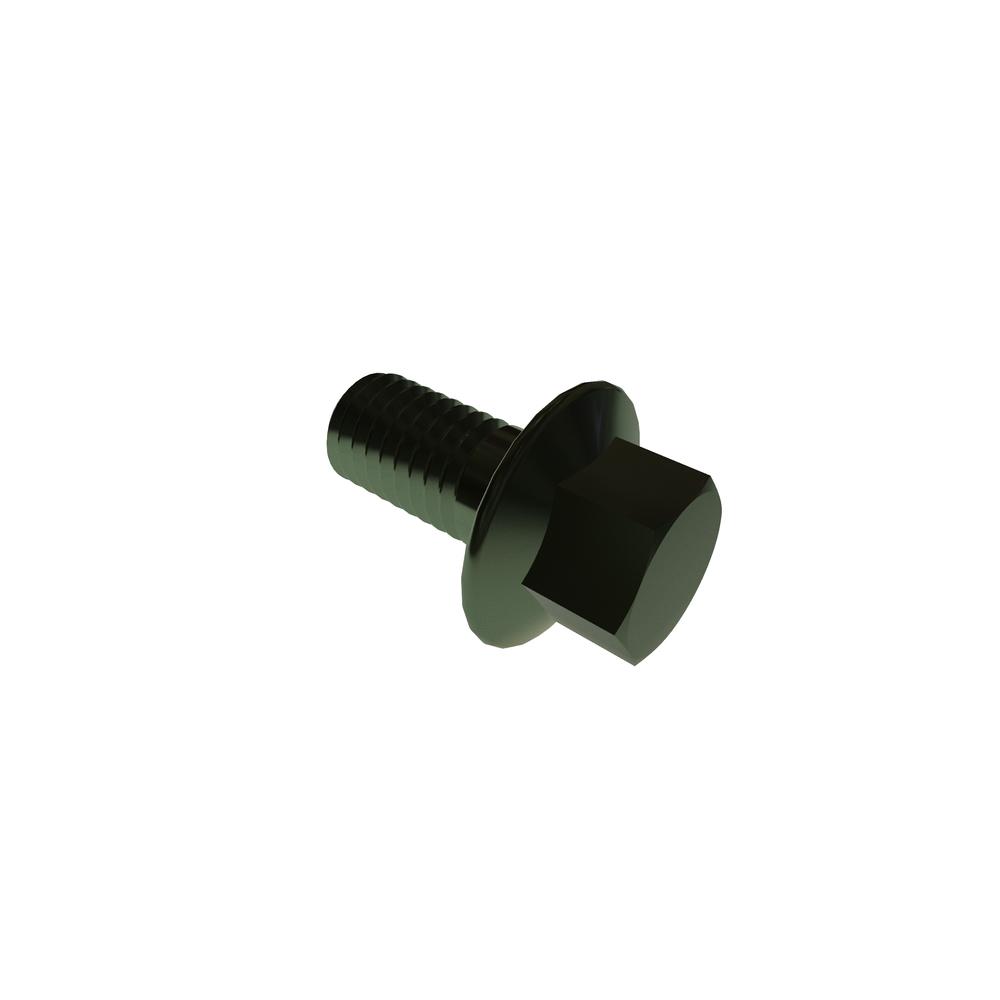

M8-1.25 X 16 HX FLANGE BOLT 8.8 ZN CR3
.8C16HFBWR
| Item Id | .8C16HFBWR |
| Description | M8-1.25 X 16 HX FLANGE BOLT 8.8 ZN CR3 |
| Extended Description | RoHS |
| Packaging | EA |
| Brand | VARIED |
| Finish | Zinc Cr3 |
| Flange Diameter (Max.) | 17.00 mm |
| Grade | 8.8 |
| Head Height (Max.) | 8.50 mm |
| Head Type | Hex Flange Bolt |
| Material | Steel |
| Meets (Standard) | ASME B18.2.3.4M |
| Nominal Diameter | 8.00 mm |
| RoHS | Compliant |
| Thread Length | 12.0 mm |
| Thread Size | M8x1.25 |
| Thread Type | Metric Coarse |
| Total Length | 16mm |
| Total Shank Diameter (Max.) | 8.00 mm |
| Total Shank Diameter (Min.) | 7.78 mm |
| Type | Flange Bolt |
| Units | Metric |
| Width Across Flat (Max.) | 10.00 mm |
| Width Across Flat (Min.) | 9.64 mm |
| Wrenching Height (Min.) | 3.80 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
