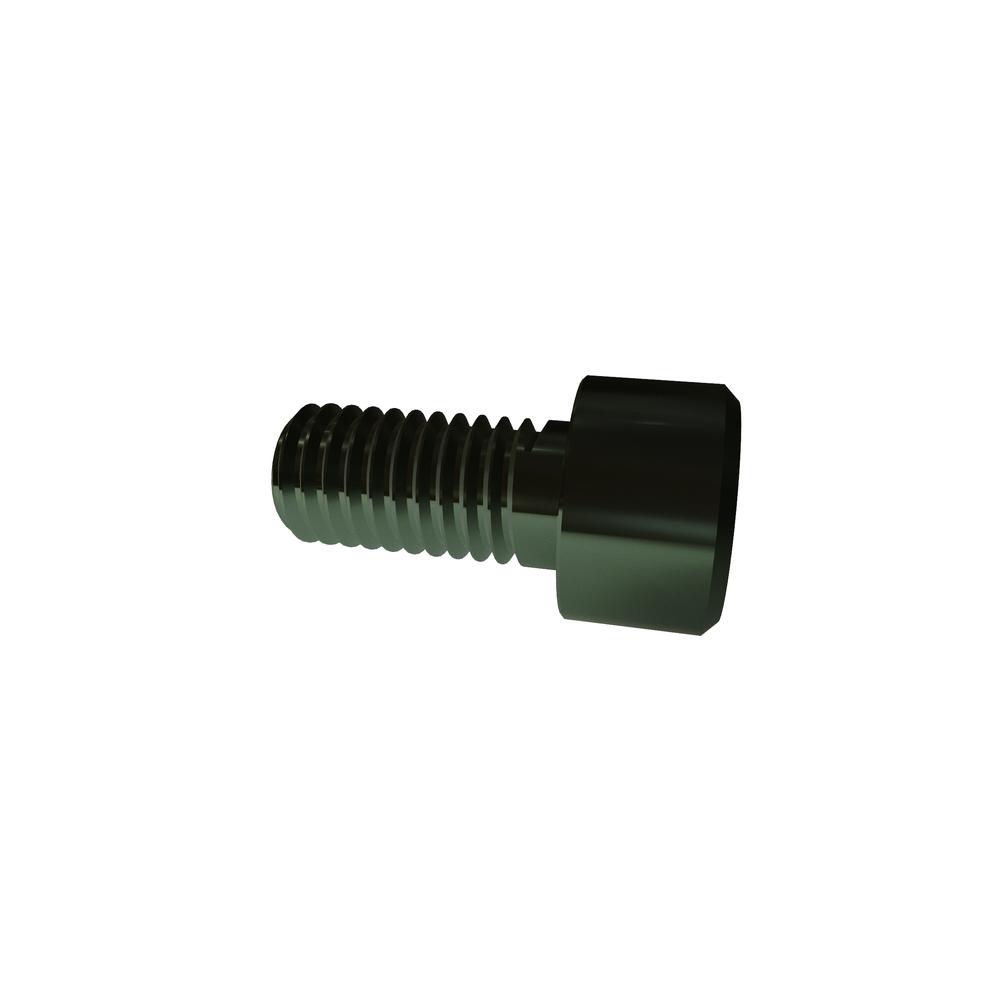

Image for reference purposes only. Actual product may vary.
.8C16SHCAR
M8-1.25 X 16 SOC CAP ALLOY ZN
Alternate Codes: 90128A273
M8-1.25 X 16 Socket Cap DIN912 12.9 Alloy Zinc Plated RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.954 | $0.607 | $0.557 | $0.514 | $0.434 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | M8x1.25 |
| Finish | Zinc Cr3 Plated |
| Material | Alloy Steel |
| Head Type | Socket |
| Drive Type | Hex Socket |
| Brand | VARIED |
| Length | 16mm |
| Key Engagement (Min.) | 4.00 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Additional Industry Cross Reference | 90128A273 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3.1M |
| Body Diameter (Max.) | 8.00 mm |
| Head Diameter (Max.) | 13.00 mm |
| Head Diameter (Min.) | 12.70 mm |
| Head Height (Max.) | 8.00 mm |
| Head Height (Min.) | 7.83 mm |
| Hex Socket Size | 6.00 mm |
