.8C20HFBXB

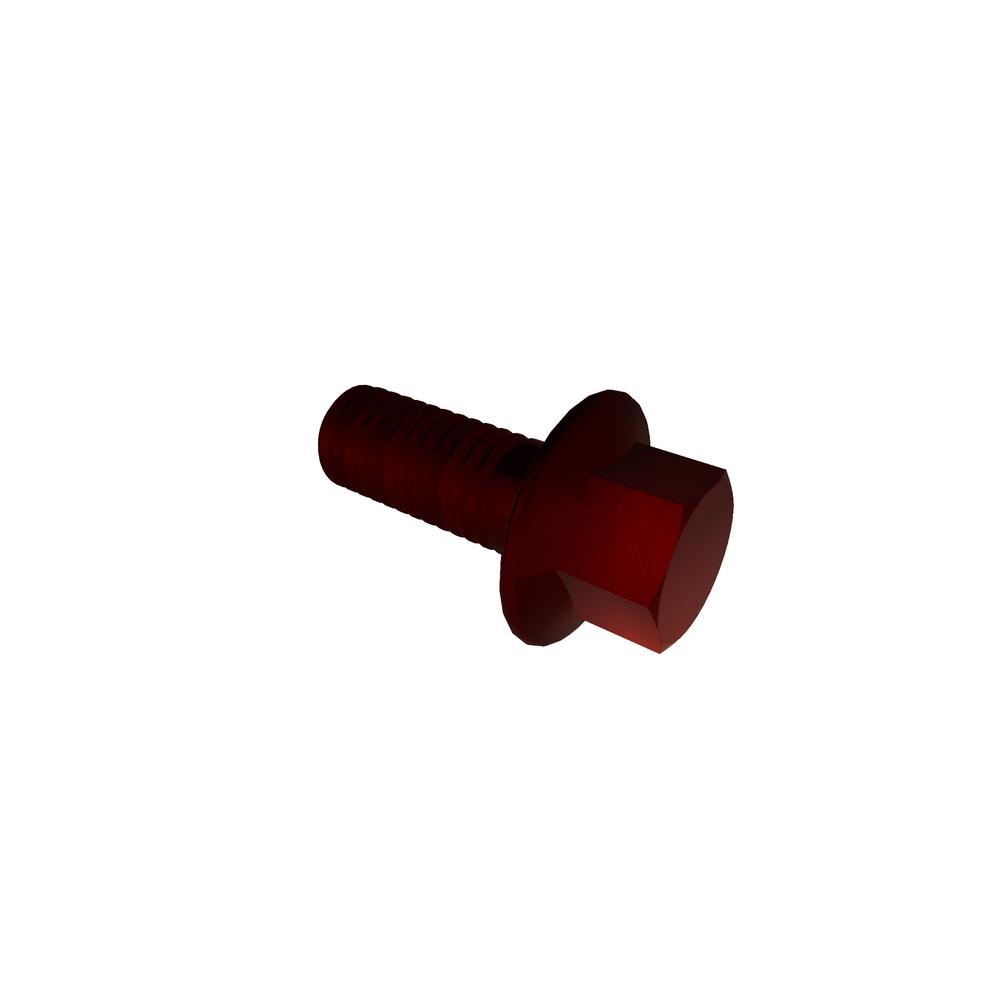

M8-1.25 X 20 HEX FLANGE BOLT STL 10.9
Alternate Codes: 98093A538
BLACK PHOSPHATE DIN6921
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 8.00 mm |
| Thread Size | M8x1.25 |
| Finish | Plain |
| Type | Flange Bolt |
| Thread Length | 16.0 mm |
| Brand | VARIED |
| Grade | 10.9 |
| Material | Alloy Steel |
| Total Length | 20mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Head Type | Hex Flange Bolt |
| Total Shank Diameter (Min.) | 7.78 mm |
| Total Shank Diameter (Max.) | 8.00 mm |
| Flange Diameter (Max.) | 17.00 mm |
| Wrenching Height (Min.) | 3.80 mm |
| Additional Industry Cross Reference | 98093A538 |
| Meets (Standard) | ASME B18.2.3.4M |
| Head Height (Max.) | 8.50 mm |
| Width Across Flat (Max.) | 10.00 mm |
| Width Across Flat (Min.) | 9.64 mm |
