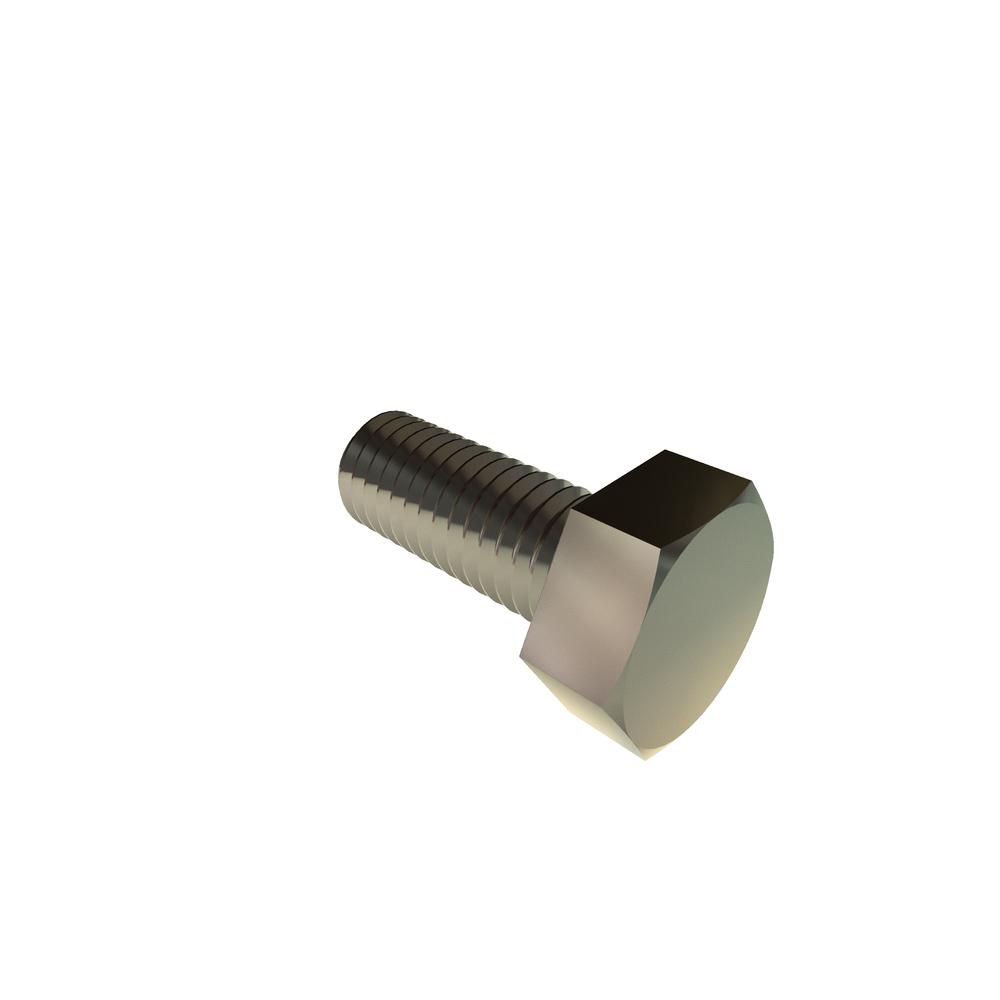

M8-1.25 X 20 HX HD SST RoHS
.8C20HHDS
| Item Id | .8C20HHDS |
| Description | M8-1.25 X 20 HEX HD SST RoHS |
| Extended Description | RoHS |
| Packaging | EA |
| Additional Industry Cross Reference | 91287A152 |
| Body Diameter (Max.) | 8.58 mm |
| Body Diameter (Min.) | 7.42 mm |
| Brand | VARIED |
| Finish | Plain |
| Grade | Other |
| Head Height (Max.) | 5.68 mm |
| Head Height (Min.) | 5.10 mm |
| Head Type | Hex |
| Length | 20mm |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.2.3.5M |
| Nominal Thread Size | 8.00 mm |
| RoHS | Compliant |
| Thread Size | M8x1.25 |
| Thread Type | Metric Coarse |
| Units | Metric |
| Width Across Flat (Max.) | 13.00 mm |
| Width Across Flat (Min.) | 12.57 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
