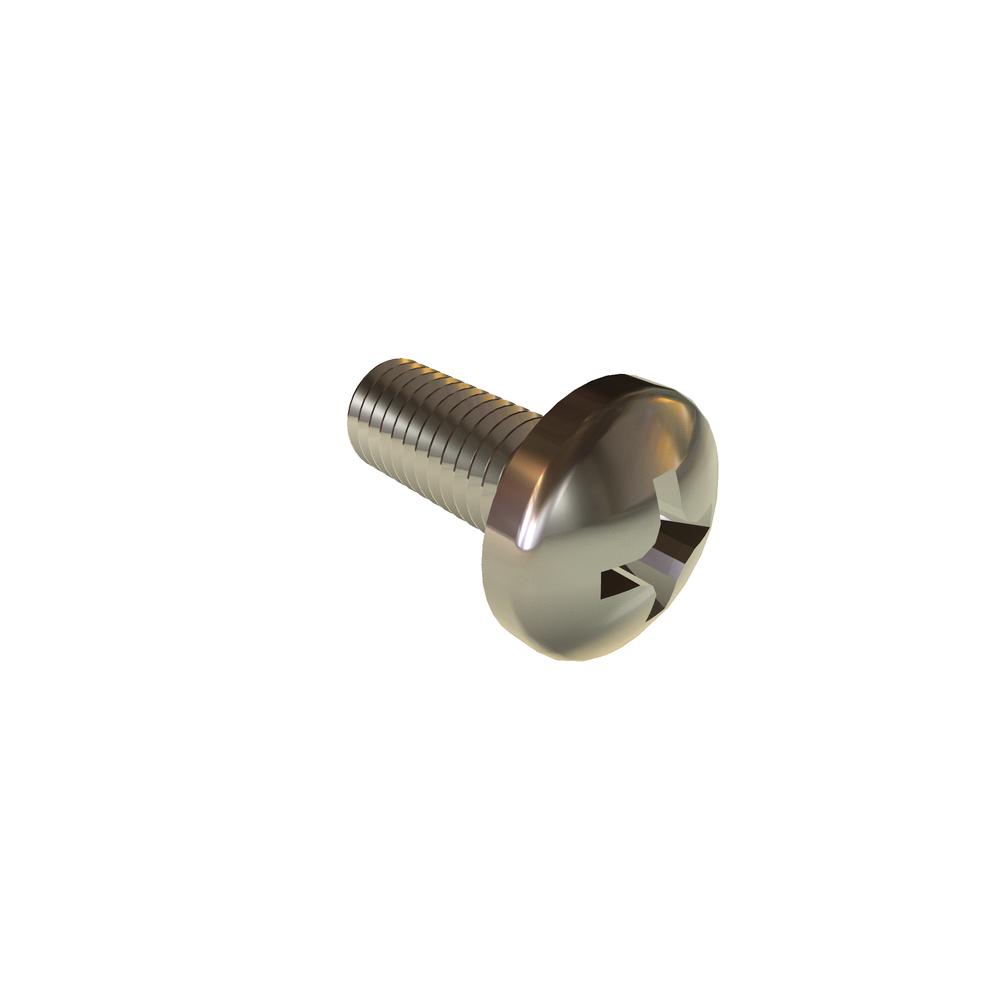

Image for reference purposes only. Actual product may vary.
.8C20PPMS
M8-1.25 X 20 PH PAN SST RoHS
Alternate Codes: 92000A528
M8-1.25 X 20 Phillips Pan Head DIN7985 Stainless Steel RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 20mm |
| Thread Size | M8x1.25 |
| Finish | Plain |
| Brand | VARIED |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 8.00 mm |
| Head Type | Pan |
| Drive Size | 4 |
| Recess Diameter | 9.02 mm |
| Head Radius (Min.) | 13.00 mm |
| Body Diameter (Min.) | 7.04 mm |
| Recess Depth (Min.) | 4.00 mm |
| Recess Depth (Max.) | 4.60 mm |
| Additional Industry Cross Reference | 92000A528 92000A528 |
| RoHS | Compliant |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 8.00 mm |
| Head Diameter (Max.) | 16.00 mm |
| Head Diameter (Min.) | 15.57 mm |
| Head Height (Max.) | 6.00 mm |
| Head Height (Min.) | 5.70 mm |
