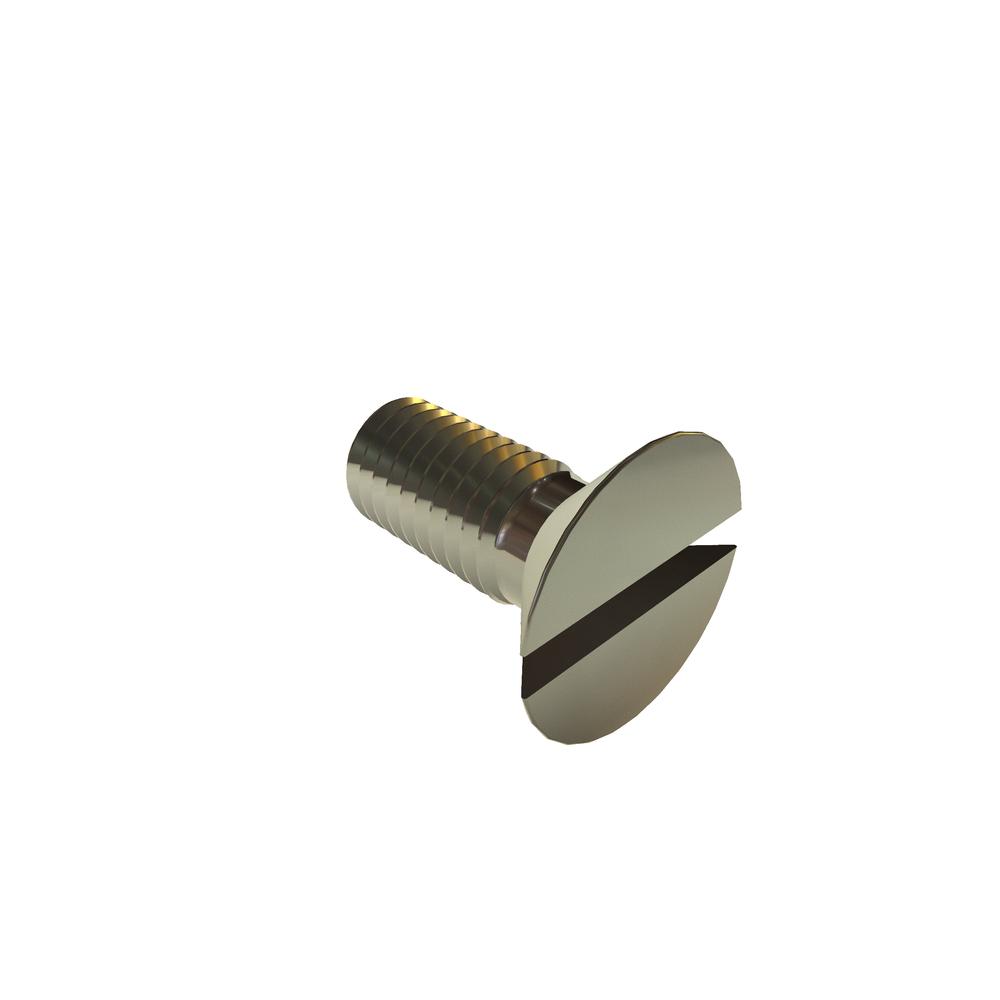

M8-1.25 X 20 SLOT FLAT DIN963 SST RoHS
.8C20SFMS
| Item Id | .8C20SFMS |
| Description | M8-1.25 X 20 SLOT FLAT DIN963 SST RoHS |
| Alternate Codes | 91430A528 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91430A528 |
| Brand | VARIED |
| Drive Type | Slotted |
| Finish | Plain |
| Head Diameter (Max.) | 15.80 mm |
| Head Diameter (Min.) | 15.37 mm |
| Head Height | 4.60 mm |
| Head Type | Flat |
| Length | 20mm |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 8.00 mm |
| RoHS | Compliant |
| Slot Depth (Max.) | 2.3 mm |
| Slot Depth (Min.) | 1.80 mm |
| Slot Width (Max.) | 2.3 mm |
| Slot Width (Min.) | 2.06 mm |
| Thread Size | M8x1.25 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
